Switch - Front Seat Control



Switch - Front Seat Control

Service Repair No - 78.70.89

Before disconnecting the battery, ensure all text and cautions in the battery disconnection section are observed.

Remove

1. Raise seat cushion.
2. Make the SRS system safe.

WARNING: Always disconnect both battery leads before beginning work on the SRS system. Disconnect the negative lead first. Never reverse connect the battery.

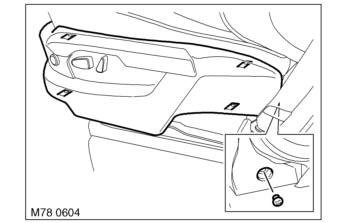

3. Remove screw securing valance.
4. Release 4 fixings securing outer valance and carefully disengage valance from seat.

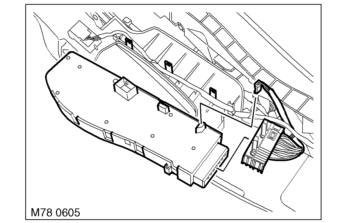

5. Release fixings, disconnect multiplugs, and remove switch pack.

Refit

1. Ensure lumbar switch harness is correctly located.
2. Position switch pack, connect multiplugs and fit switch pack to valance.
3. Align fixings, carefully fit valance and secure with screw.
4. Connect battery leads, earth lead last.
5. Reposition seat.
