Undertray - Front

Undertray - Front

Service Repair No - 76.11.81

Remove

1. Raise vehicle on lift.







2. Release clips and remove towing eye finisher.

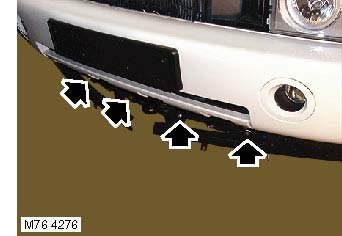

3. Remove 6 screws securing air dam to undertray.
4. Remove 2 screws securing air dam support brackets to bumper.

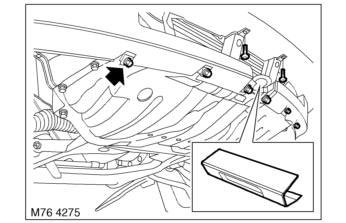

5. Carefully ease air dam aside for access and remove 4 screws.

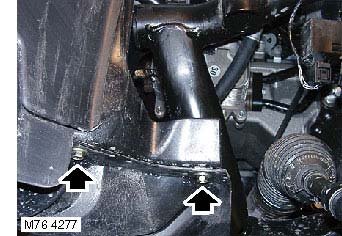

6. Remove 2 screws securing LH inner edge of wheel arch liner to undertray, repeat on RH side.

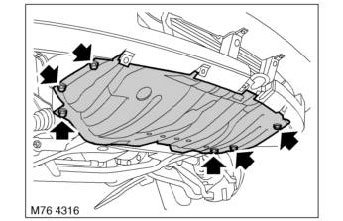

7. Remove 6 remaining screws securing undertray, release panel and remove.

NOTE: Do not carry out further dismantling if component is removed for access only.

8. Remove 6 screw retaining clips from undertray.

Refit

1. Fit screw retaining clips to undertray.
2. Position undertray and secure with screws.
3. Fit screws securing air dam and wheel arch liners.
4. Fit and secure towing eye finisher.
