Latch - Tailgate

76.37.17 Latch - Tailgate

Remove

1. Remove tailgate trim casing.

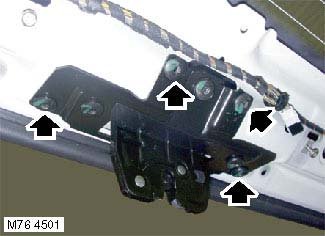

2. Remove 4 Torx bolts securing latch and support bracket to tailgate.

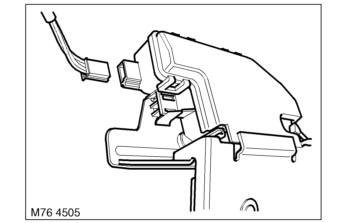

3. Disconnect multiplug from latch.
4. Remove latch assembly.

NOTE: Do not carry out further dismantling if component is removed for access only.

5. Disconnect manual release cable.
6. Remove 3 Torx bolts securing support bracket to latch. Remove bracket.

Refit

1. Position support bracket to latch, fit bolts and tighten to 10 Nm (7 lbf.ft).
2. Connect manual release cable.
3. Position latch assembly to tailgate and connect multiplug.
4. Fit bolts to latch and tighten to 10 Nm (7 lbf.ft).
5. Fit tailgate trim casing.
6. Adjust tailgate striker.
