Driver Side Register

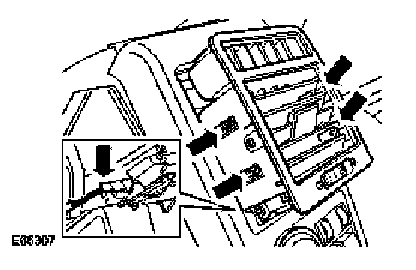

Driver Side RegisterRemoval 1.
Remove the register.
^
Carefully release the 4 internal clips, apply a even outward pressure until the last clip is released.
^
Disconnect the electrical connector.
CAUTION: Care must be taken to avoid damaging the register internal components.
Installation 1.
Install the register.
^
Connect the electrical connector.
^
Position and secure the clips.
