Front Wheel Alignment
FRONT WHEEL ALIGNMENT - CHECK & ADJUSTService repair no - 57.65.01
Check
1. Ensure tire pressures are correct and vehicle is at correct ride height.
2. Roll vehicle backwards and forwards to relieve stresses in steering and suspension.
3. Ensure that wheel alignment equipment is properly calibrated.
NOTE: Only use four wheel alignment equipment recommended for use by Land Rover.
4. Check and if necessary adjust wheel alignment.
Adjust
1. Disconnect battery negative lead.
2. Mark position of steering ball joints for reference.

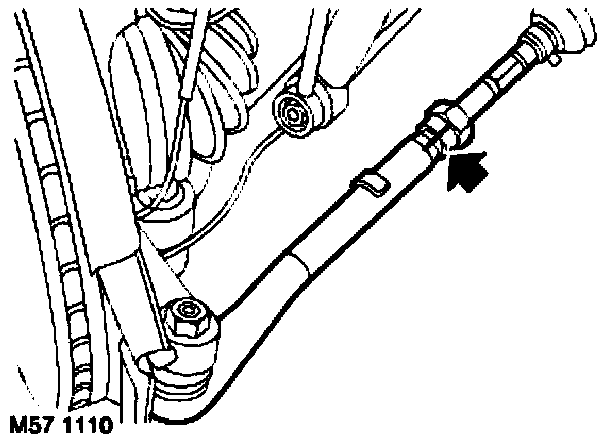

3. Loosen track rod end locknut.
4. Adjust by rotating track rod using hexagon on shaft. Do not allow gaiter to twist.
CAUTION: Both track rods must be rotated an equal amount.
5. Recheck front wheel alignment.
6. Tighten track rod end locknut to 55 Nm (40 ft. lbs.).
7. Connect battery negative lead.
