Front Door Window Glass: Service and Repair

Glass - Front Door

Service Repair No - 76.31.01

Remove

1. Lower door glass.
2. Remove plastic sheet.

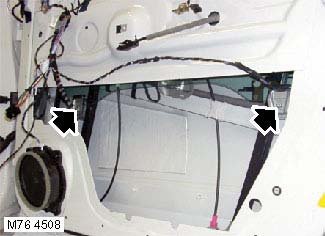

3. Loosen two Torx bolts securing glass to regulator.
4. Remove glass.

Refit

1. Position glass to regulator.
2. Lightly tighten Torx bolts.
3. Raise regulator, check glass alignment, adjust as necessary.
4. Tighten Torx bolts securing front glass to 10 Nm (7 lbf.ft).
5. Fit plastic sheet.
