Front Door Window Regulator: Service and Repair

Glass Regulator - Front Door

Service Repair No - 76.31.45

Remove

1. Remove front door glass.







2. Disconnect multiplug from regulator motor.

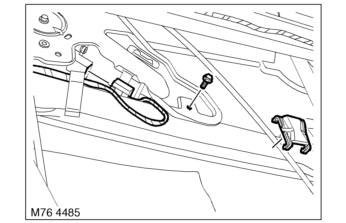

3. Remove clip securing cable to side impact protection beam.
4. Remove Torx bolt and clamp securing regulator to side impact protection beam.







5. Remove 2 lower bolts securing regulator to door frame and discard.

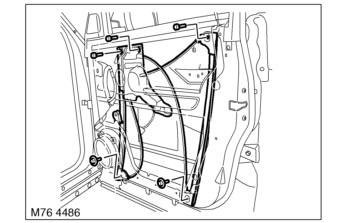

6. Remove 3 Torx bolts securing regulator to door frame and withdraw regulator through access panel.

Refit

1. Position regulator to door and unclip motor transit package from rail.
2. Fit upper bolts and clamp, tighten to 10 Nm (7 lbf.ft).
3. Fit new lower bolts and tighten to 10 Nm (7 lbf.ft).
4. Fit cable retaining clip.
5. Connect multiplug to motor.
6. Fit door glass.
