Rear Door Window Regulator: Service and Repair

Glass Regulator - Rear Door

Service Repair No - 76.31.46

Remove

1. Remove rear door glass.

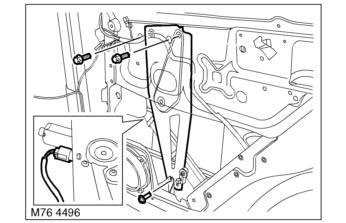

2. Disconnect multiplug from regulator motor.
3. Remove and discard regulator lower fixing bolt.
4. Remove 2 Torx bolts securing regulator to door frame and withdraw regulator through access panel.

Refit

1. Position regulator to door and unclip motor transit package from rail.
2. Fit regulator upper bolts and tighten to 10 Nm (7 lbf.ft).
3. Fit new lower bolt and tighten to 10 Nm (7 lbf.ft).
4. Connect multiplug to motor.
5. Fit rear door glass.
