Hood Sensor/Switch (For Alarm): Service and Repair

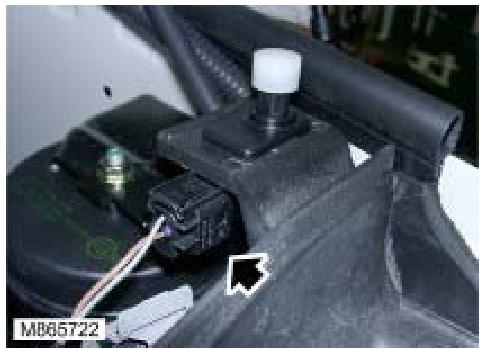

Hood Switch
Service Repair No - 86.77.20Removal 1.
Disconnect the hood switch electrical connector.
2.
Remove the hood switch from the plenum chamber support.
Installation 1.
Install the hood switch to the plenum chamber support.
2.
Connect the hood switch electrical connector.
