Yaw Rate Sensor: Service and Repair

Yaw Rate Sensor

Service Repair No - 70.70.35

Removal
1. Disconnect the negative battery cable
2. Remove the auxiliary heater core and evaporator core housing

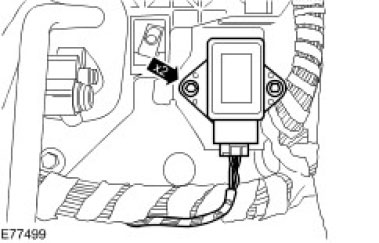

3. Remove the yaw rate sensor
^ Disconnect the electrical connector
^ Remove the 2 bolts

Installation
1. Install the yaw rate sensor
^ Install the 2 bolts and tighten to 7 Nm (5 ft. lbs.)
2. Install the auxiliary heater core and evaporator core housing
3. Connect the battery ground cable
