Brake Lamp: Service and Repair



Rear Lamp Assembly

Service Repair No - 86.40.70

Removal

CAUTION: Always protect paintwork and glass when removing exterior components.

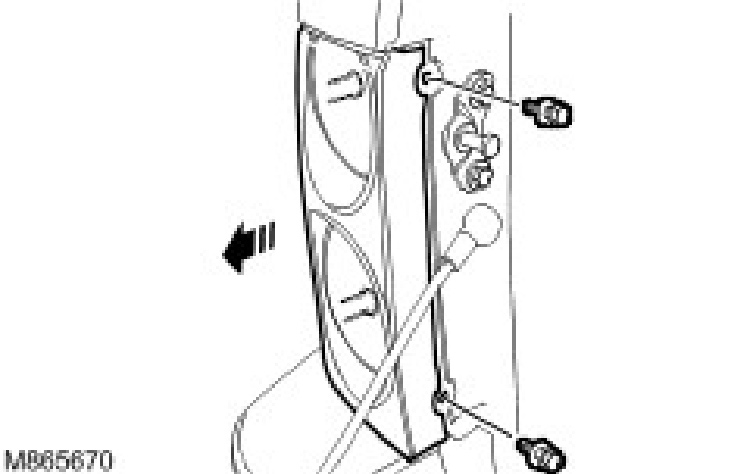

1. Remove the rear lamp assembly.
^ Remove the 2 screws.
^ Disconnect the electrical connector.





NOTE: Do not disassemble further if the component is removed for access only.

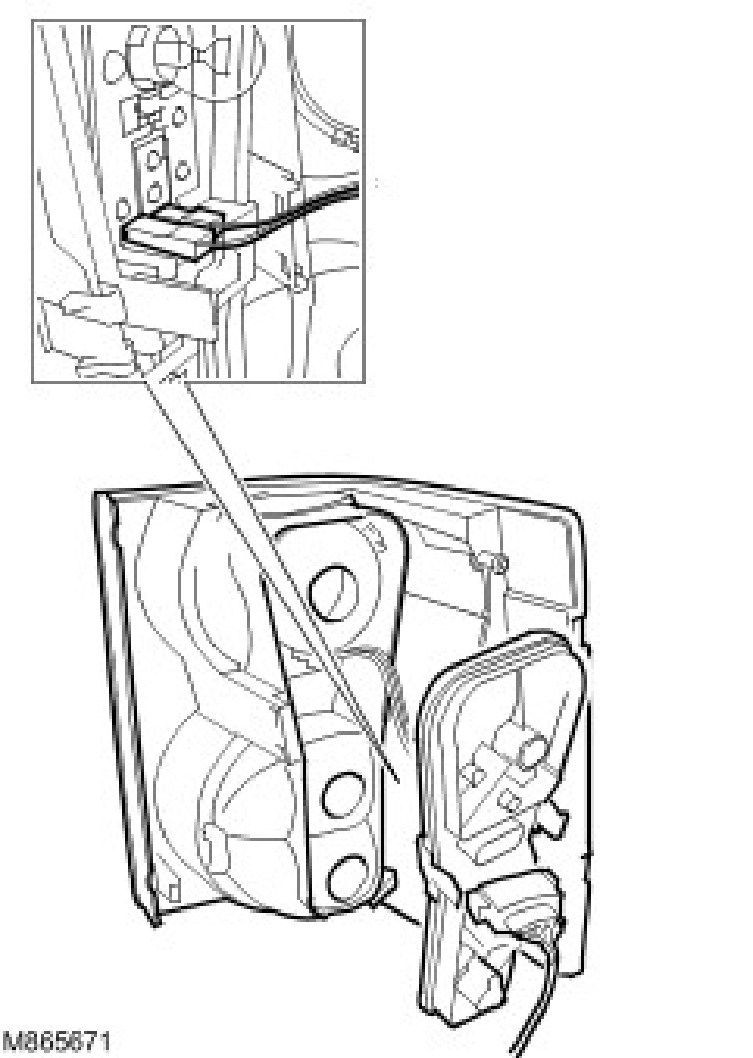

2. Remove the bulb holder.
^ Release the 2 clips.
^ Disconnect the 2 electrical connectors.





3. Remove the 3 bulbs.

Installation
1. Install the bulbs.
2. Install the bulb holder.
^ Connect the electrical connectors.
3. Install the rear lamp assembly.
^ Connect the electrical connector.
^ Tighten the screws.
