Fuse Colors & Removal Tweezer
FUSE COLORS Violet
3 amp Tan
5 amp Brown
7.5 amp Red
10 amp Blue
15 amp Yellow
20 amp White
25 amp Green
30 amp Orange

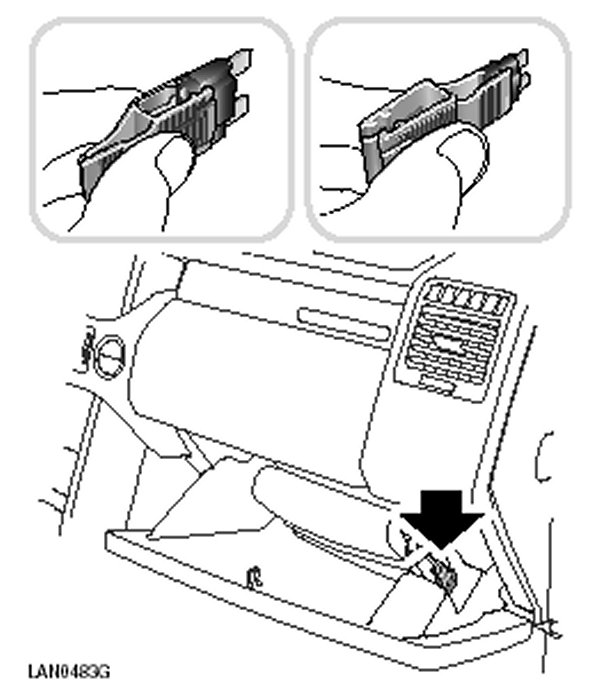

40 amp The fuse removal tweezers are located in the lower glovebox (arrow in illustration). Press the tweezers onto the head of the suspect fuse (as shown) and pull to remove. A break in the wire inside the fuse indicates that the fuse has blown and must be replaced.
