Transmission Mount: Service and Repair

Transmission Support Insulator

Service Repair No - 12.45.08

Removal

1. Disconnect the battery ground cable.

2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
3. Remove the transmission support crossmember.

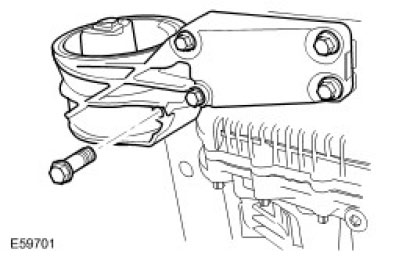

4. Remove the transmission support insulator.
^ Remove the 5 bolts.





Installation

1. Install the transmission support insulator.
^ Tighten the bolts to 45 Nm (33 ft. lbs.).

2. Install the transmission support crossmember.
3. Connect the battery ground cable.
