Heater Core Case: Service and Repair

Plenum Chamber

Service Repair No - 80.15.62

Removal

1. Remove the A-pillar mouldings.
2. Remove the windshield wiper arms.
3. Release the hood seal from the plenum chamber.

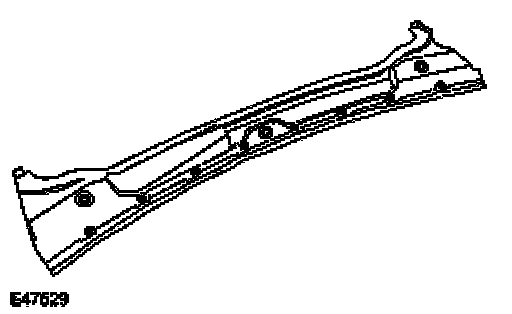

4. Remove the plenum chamber panel.
^ Release the 8 clips.

5. Remove the clips from the plenum chamber panel.

NOTE: Do not disassemble further if the component is removed for access only.

Installation

1. To install, reverse the removal procedure.
