Steering Column Multifunction Switch LH

Steering Column Multifunction Switch LH

Service Repair No - 86.65.55

Removal
1. Fully extend the steering column for access.
2. Remove the steering column upper shroud.
^ Release the 6 clips.

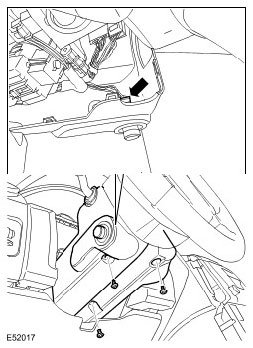

3. Remove the steering column lower shroud.
^ Remove the 3 Torx screws.
^ Disconnect the electrical connector.





4. Remove the steering column multifunction switch.
^ Disconnect the electrical connector.
^ Remove the 2 screws.





Installation
1. To install, reverse the removal procedure.
