Brake Lamp: Service and Repair
Rear Lamp AssemblyRemoval NOTE: Removal steps in this procedure may contain installation details.
CAUTION: Take extra care not to damage the edges of the component 1.

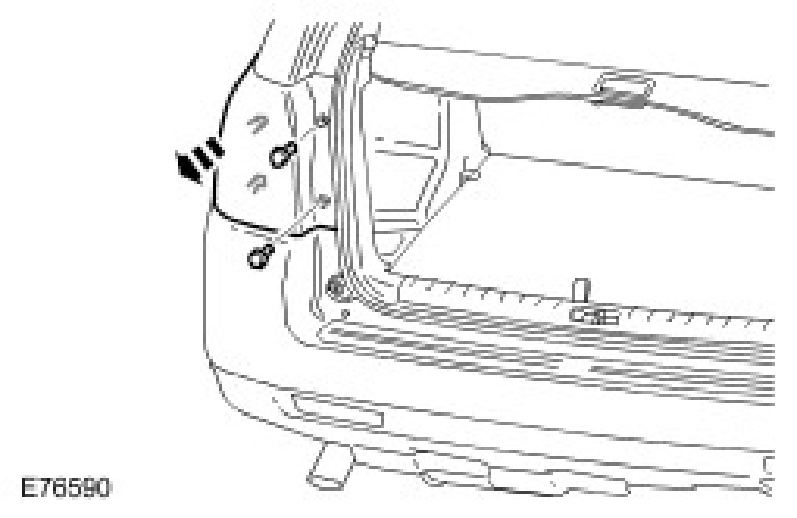

Torque:
2 Nm 3.

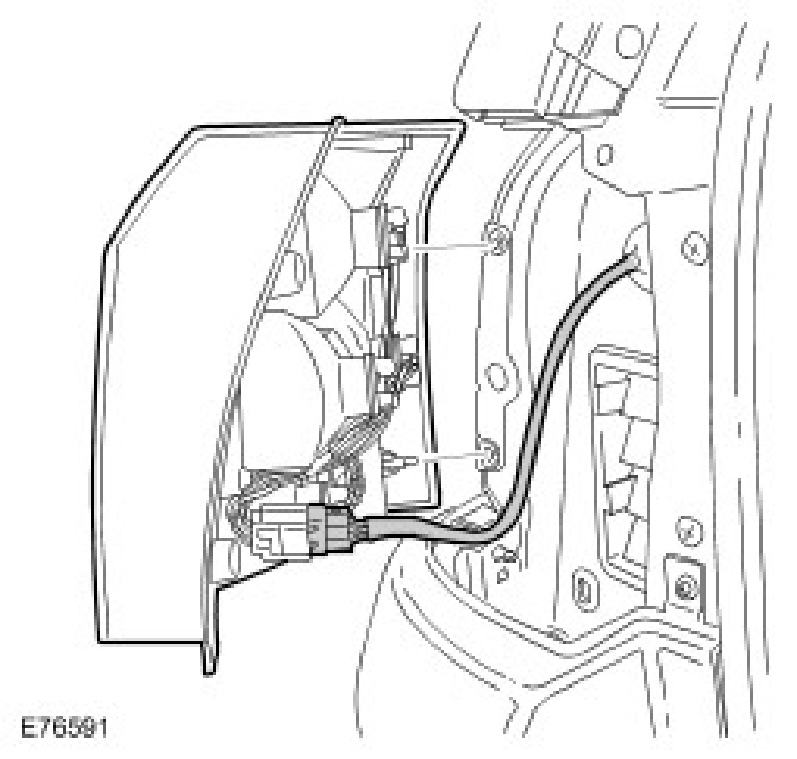

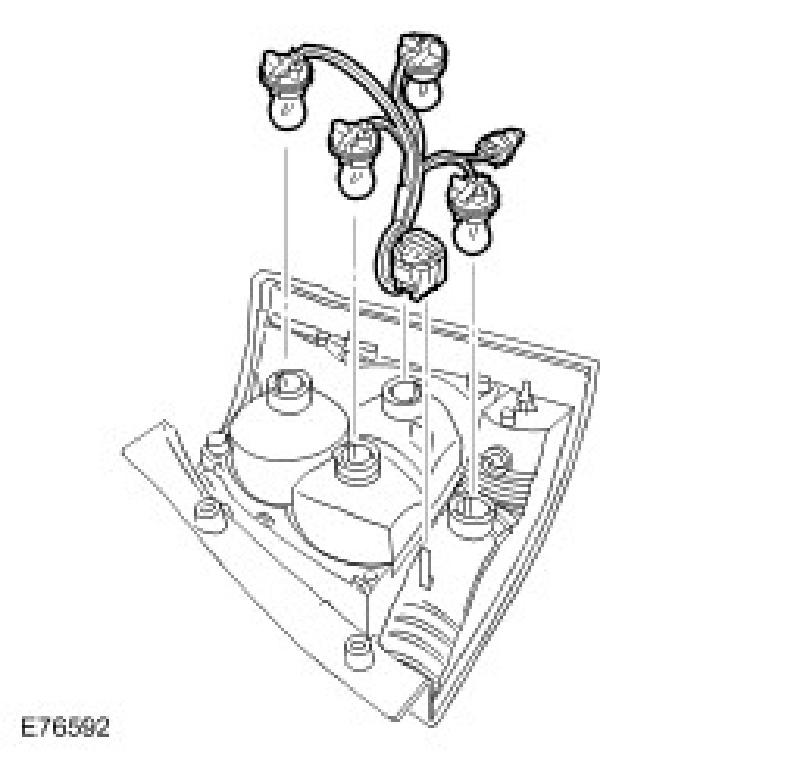

NOTE: Do not disassemble further if the component is removed for access only.
Installation 1.
To install, reverse the removal procedure.
