Air Cleaner Housing: Service and Repair



Air Cleaner

Removal

1. NOTE: Petrol model shown, diesel similar.

















5. NOTE: Note the fitted position.

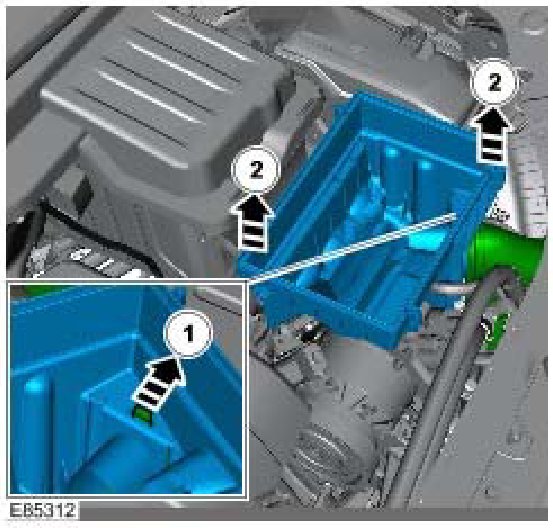

6. NOTE: Do not disassemble further if the component is removed for access only.





Installation

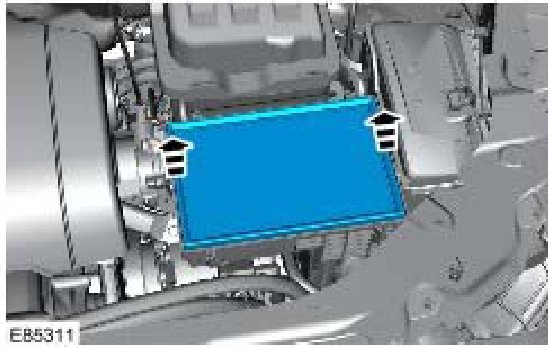

1. Install the air cleaner element.

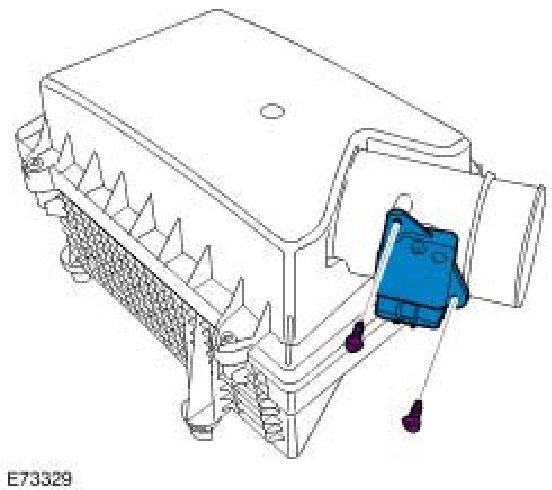

2. Install the MAF sensor.

NOTE: Align to the position noted on removal.

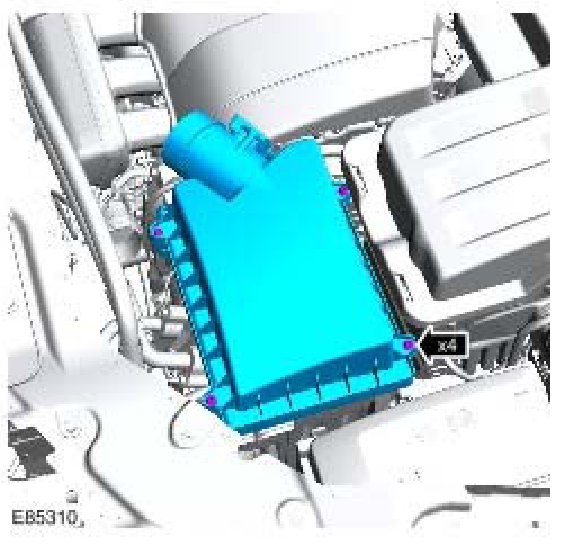

3. Install the air cleaner housing.

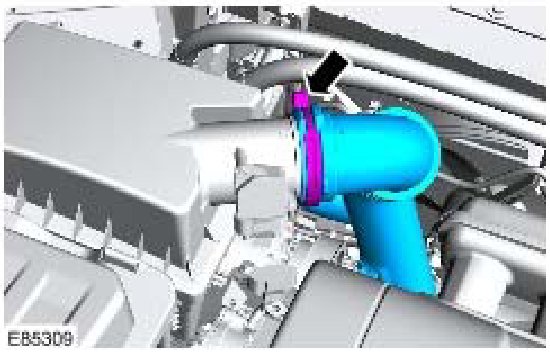

4. Install the air cleaner outlet pipes.

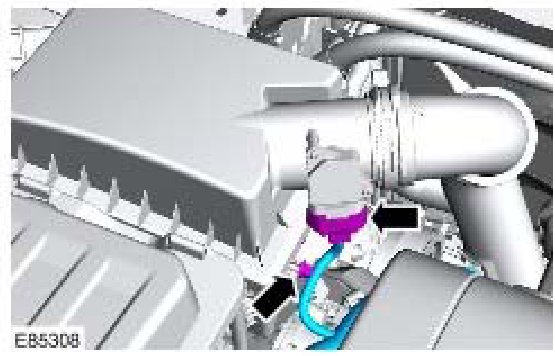

5. Connect the MAF sensor electrical connector.
