Canister Purge Control Valve: Service and Repair

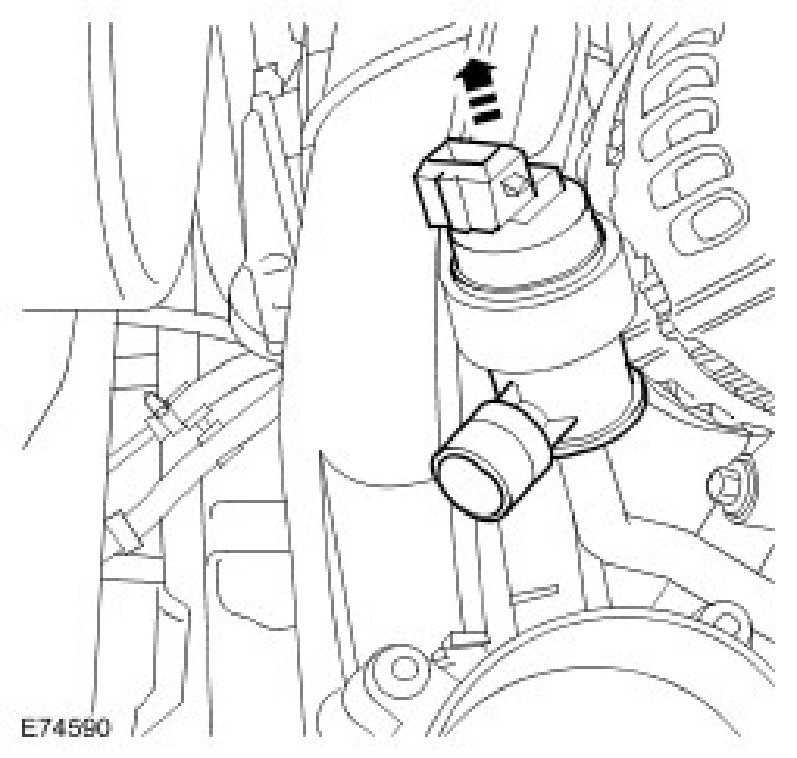

Evaporative Emission Canister Purge Valve

Removal

NOTE:

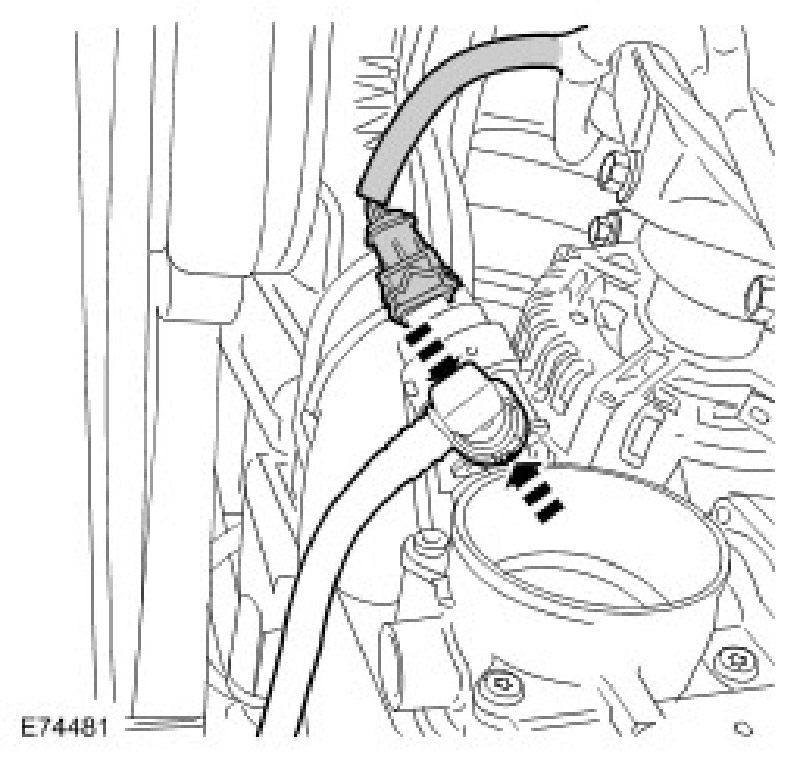

^ Take care not to disconnect the purge line from the rear of the intake manifold, when removing the purge valve.
^ Removal steps in this procedure may contain installation details.

WARNING: Make sure to support the vehicle with axle stands.

1. Raise and support the vehicle.

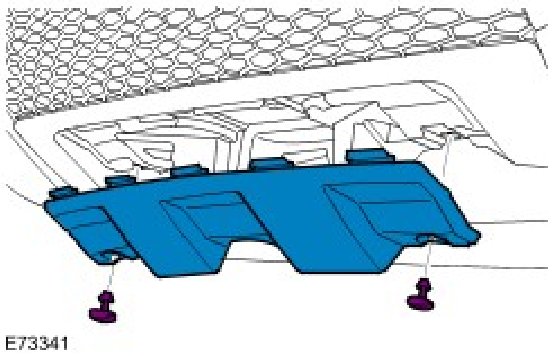

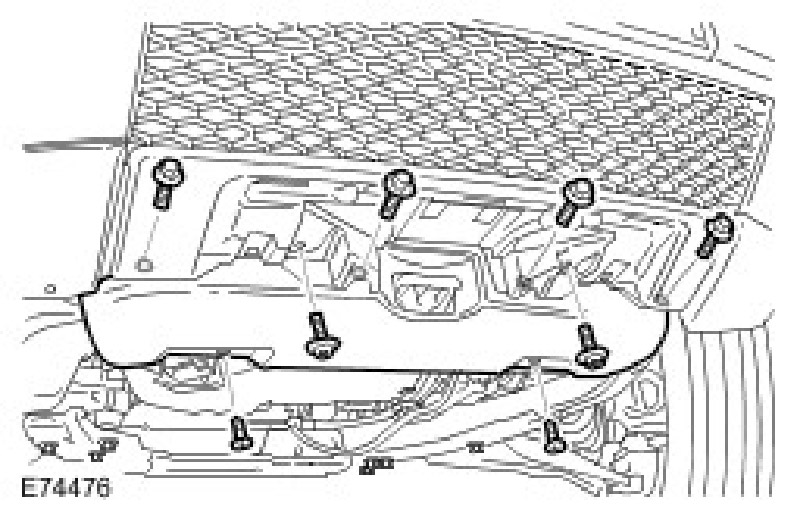

2. Remove the engine undershield.

















7. Remove the clip.

Installation
1. To install, reverse the removal procedure.
