Fog/Driving Lamp: Service and Repair



Front Fog Lamp

Service Repair No - 86.40.96

Removal

NOTE: Release each clip individually. Clips may fall off if care is not taken.

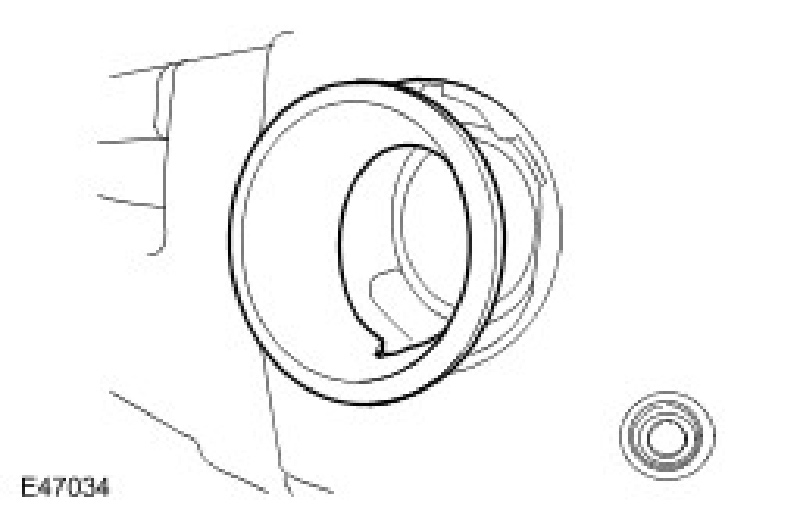

1. Remove the front fog lamp bezel.
^ Release the 5 clips.

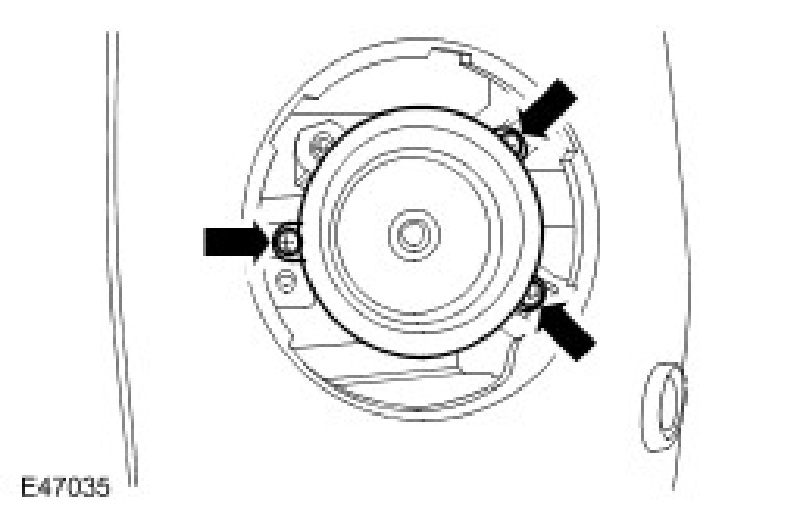

2. Release the front fog lamp.
^ Remove the 3 screws.

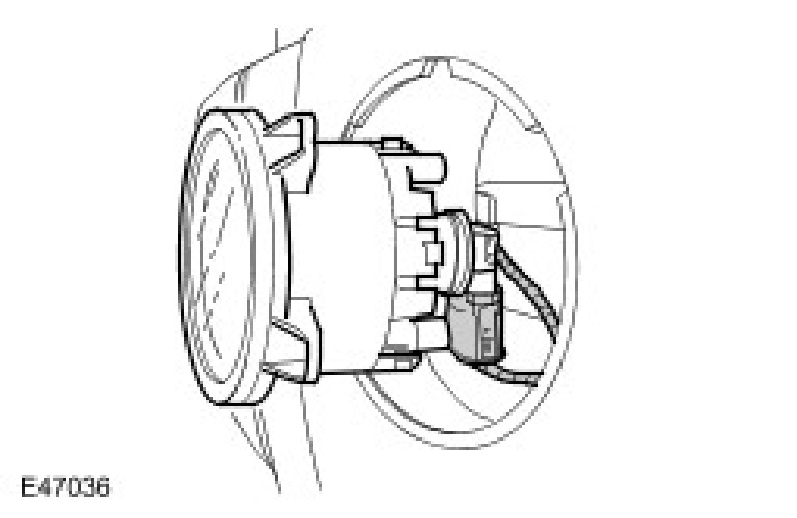

3. Remove the front fog lamp.
^ Disconnect the front fog lamp electrical connector.





Installation
1. Install the front fog lamp.
^ Connect the front fog lamp electrical connector.
^ Tighten the screws.
2. Install the front fog lamp bezel.
3. Check the fog lamp beam alignmen.
