Front Fender: Service and Repair



Fender

Service Repair No - 76.10.24

Removal

1. WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

2. Remove the front bumper cover.

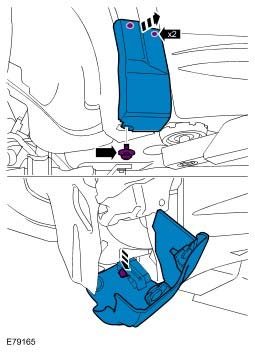

3.







4. CAUTION: Mark the components to aid installation.







5. CAUTION: Mark the components to aid installation.







6.







7.







8.







Installation

1. Install the screw retainers.
2. Install the fender edge finisher.
3. Install the fender air intake grille.

4. NOTE: Make sure that these components are installed to the noted removal position.

Install the front fender.

Torque: 5 Nm

5. NOTE: Make sure that these components are installed to the noted removal position.

Install the fender lower moulding.

6. Install the bumper cover retaining bracket.
7. Install the front bumper cover.
