Power Seat Control Module: Service and Repair

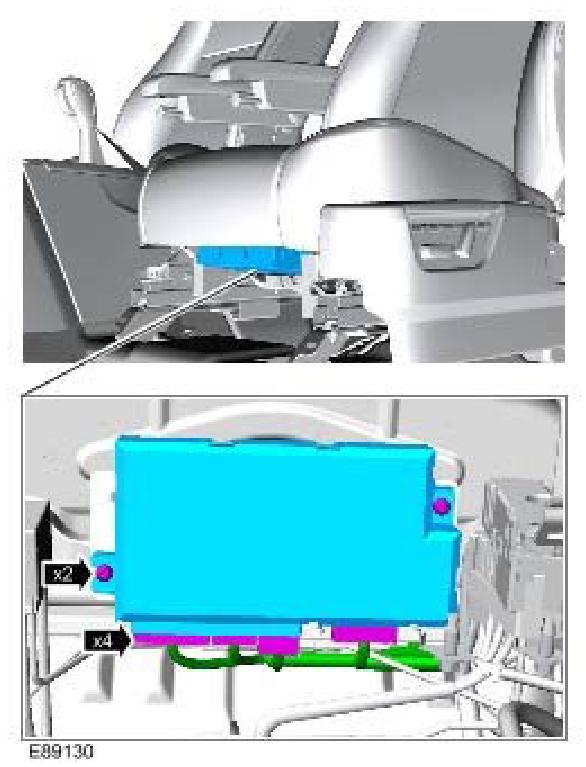

Driver Seat Module (DSM)Removal NOTE: Removal steps in this procedure may contain installation details.
1.
Remove the cover and disconnect the battery ground cable.
2.
Torque:
7NmInstallation 1.
To install, reverse the removal procedure.
2.
Using the Land Rover approved diagnostic system, calibrate a new module.
