Condenser HVAC: Service and Repair



Condenser - 3.2L

Removal
1. Remove the cover and disconnect the battery ground cable.

WARNING: Make sure to support the vehicle with axle stands.

2. Raise and support the vehicle.
3. Recover the A/C refrigerant.
4. Remove the front bumper.

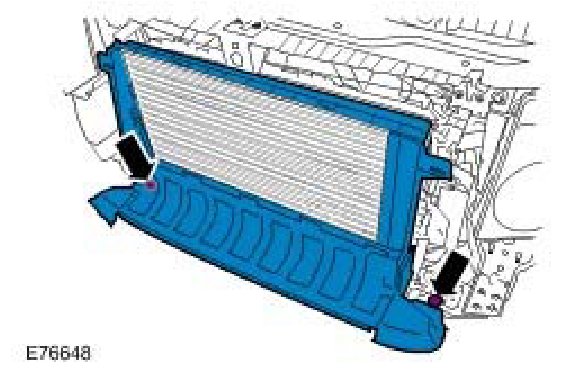

5. Remove the radiator air deflector.

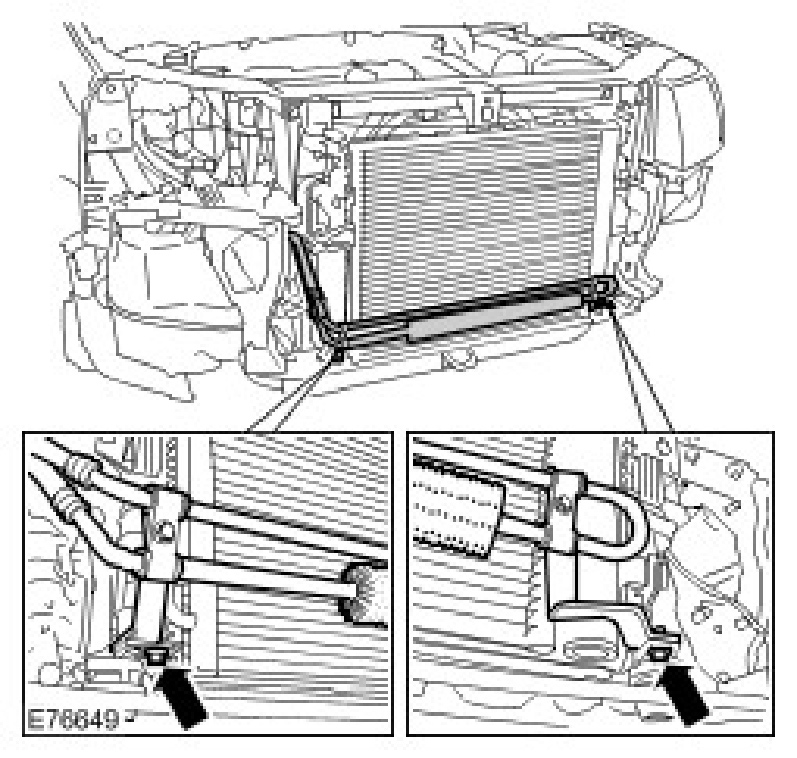

6. Release power steering cooler and secure aside.





CAUTION: Make sure that all openings are sealed.

NOTE: Remove and discard the O-ring seals.

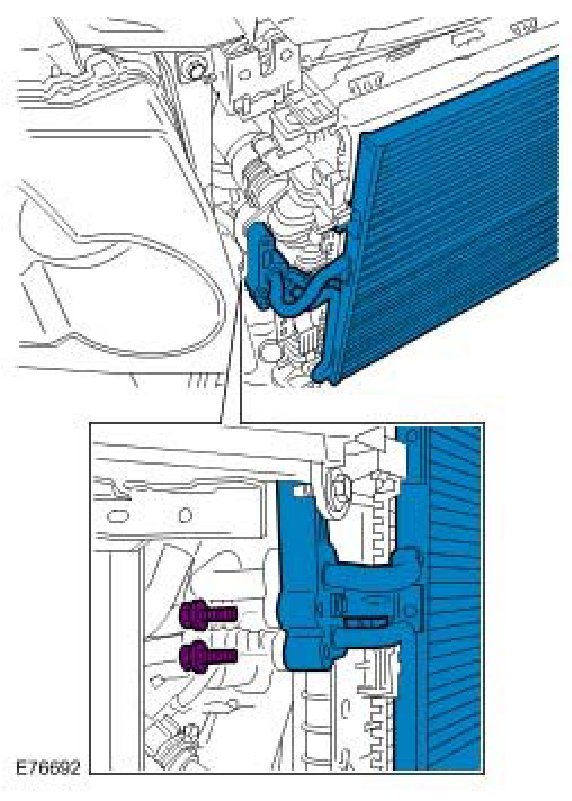

7. Disconnect the A/C condenser refrigerant lines.

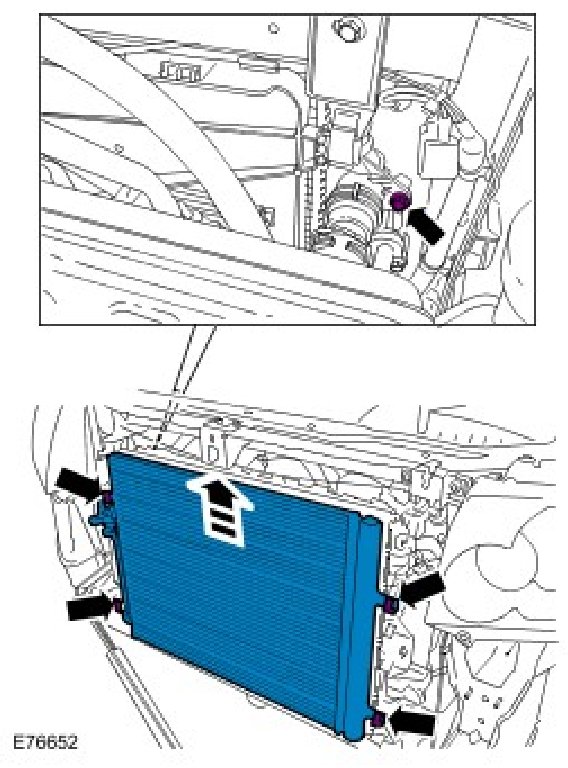

8. Remove the A/C condenser.





Installation
1. Install the A/C condenser, and tighten the bolt.

Torque: 10 Nm

CAUTION: Extreme cleanliness must be exercised when handling these components.

NOTE: Lubricate the O-ring seals with clean refrigerant oil.

2. Connect the A/C condenser refrigerant lines, tighten the bolts.

Torque: 10 Nm

3. Install the PAS cooler and tighten the bolts.

Torque: 10 Nm

4. Install the air deflector.
5. Install the front bumper.
6. Recharge the A/C system.
7. Connect the battery ground cable and install the cover.
