Heater Core: Service and Repair
Heater CoreRemoval 1.
Disconnect the battery ground cable.
2.
Drain the
cooling system.
3.

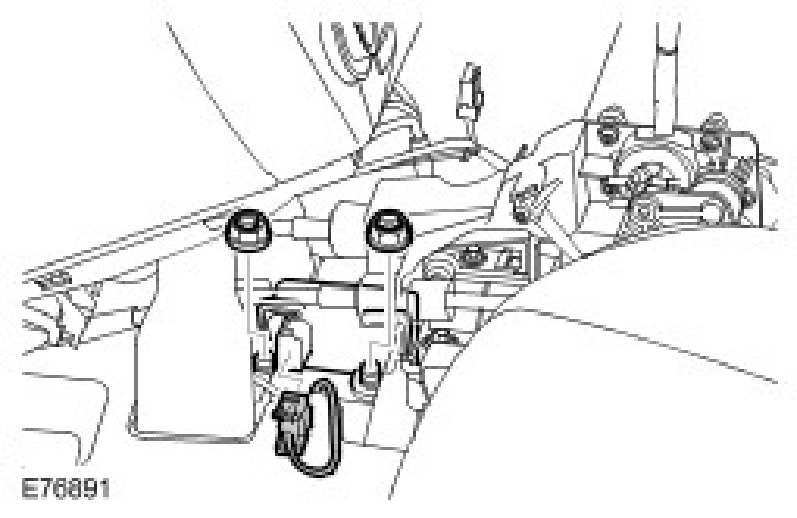

Remove the selector lever.
5.

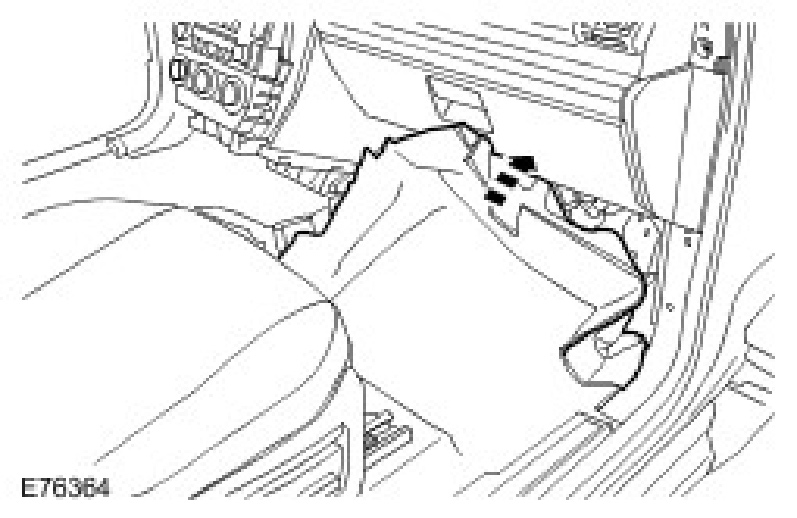

Remove the cowl side trim panel.
9.

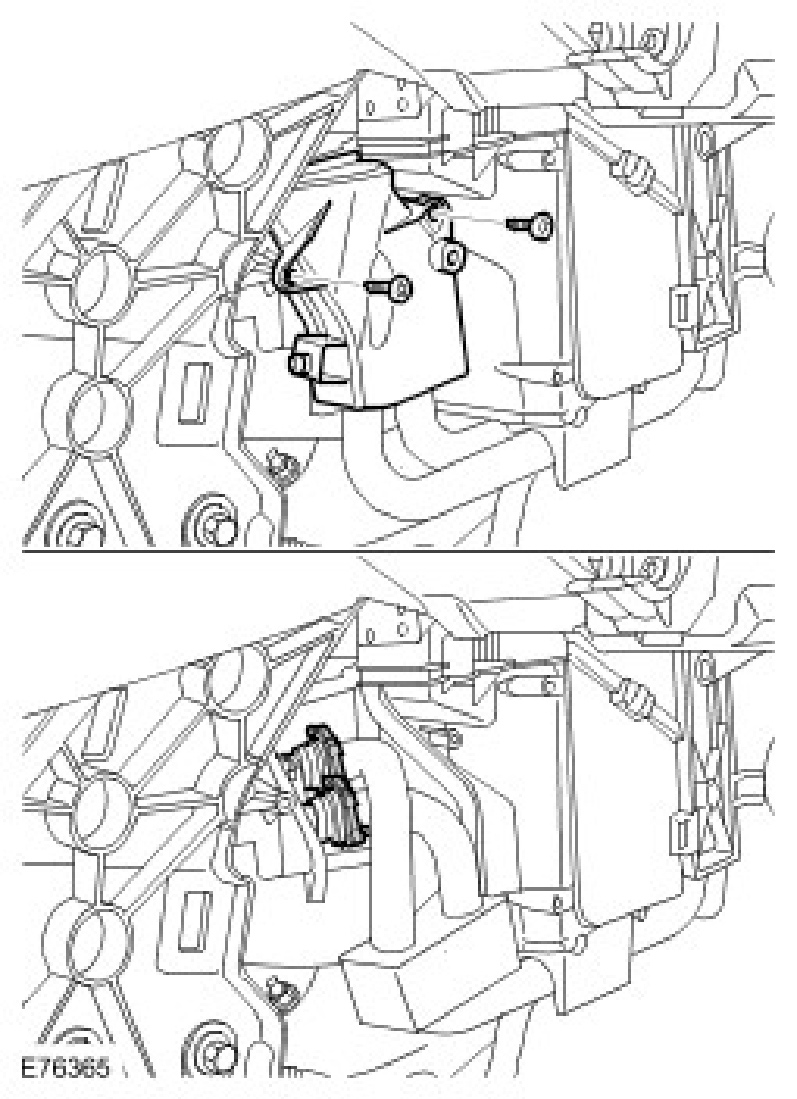

Torque:
6 Nm 10.
CAUTION: Be prepared to collect escaping coolant.
Installation 1.
To install, reverse the removal procedure.
