Refrigerant Pressure Sensor / Switch: Service and Repair



Air Conditioning (A/C) Pressure Transducer

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the plenum chamber.

CAUTION:
^ Extreme cleanliness must be exercised when handling these components.
^ Make sure that all openings are sealed. Use new blanking caps.

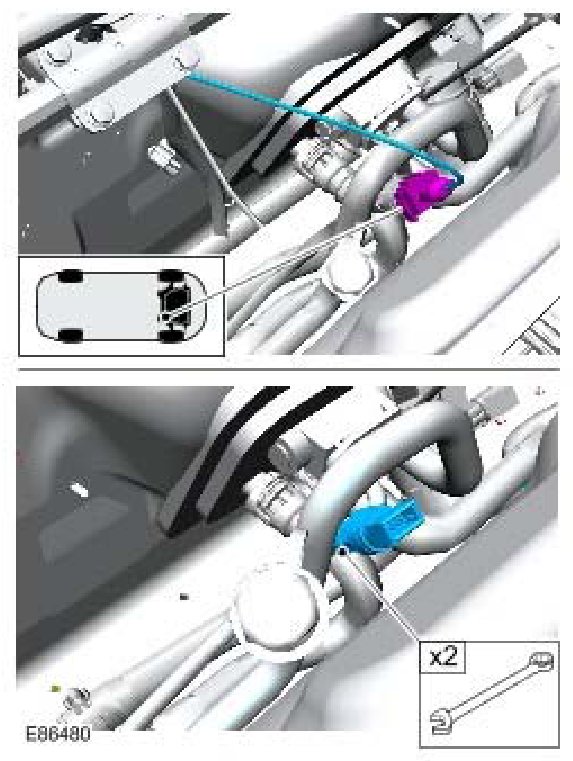

NOTE: Use an additional wrench to prevent the component from rotating.

2. Torque: 8 Nm





Installation
1. To install, reverse the removal procedure.
