Fog/Driving Lamp: Adjustments



Front Fog Lamp Adjustment

1. Align the beam setting equipment to one fog lamp.

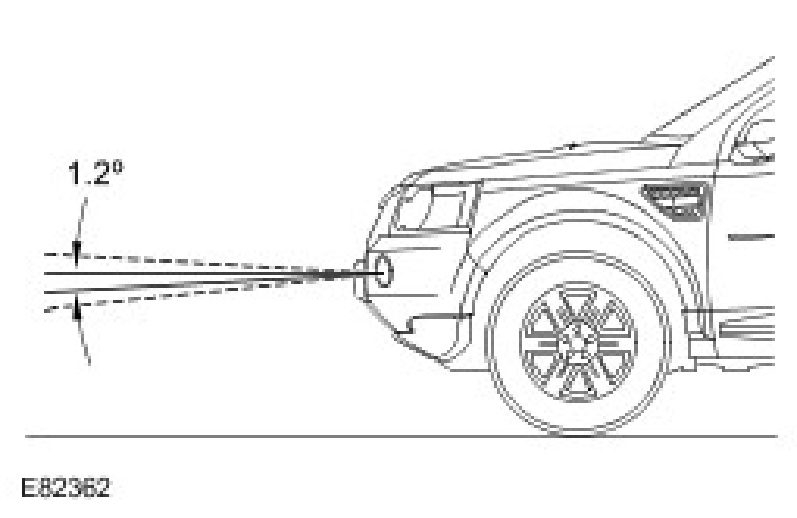

NOTE: The fog lamp beam should be set at 1.2% below the horizontal and parallel.

2. Check the fog lamp beam alignment.





3. Turn the steering on to full lock for access.

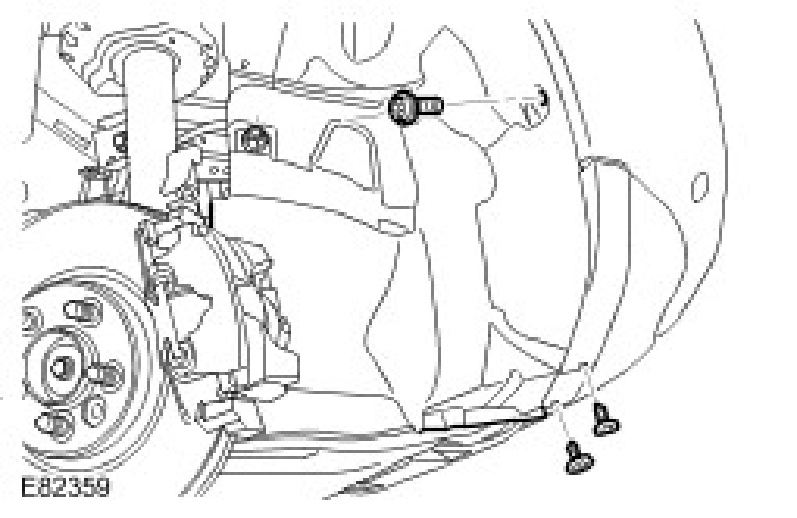

4. Release the front bumper cover from the fender splash shield.

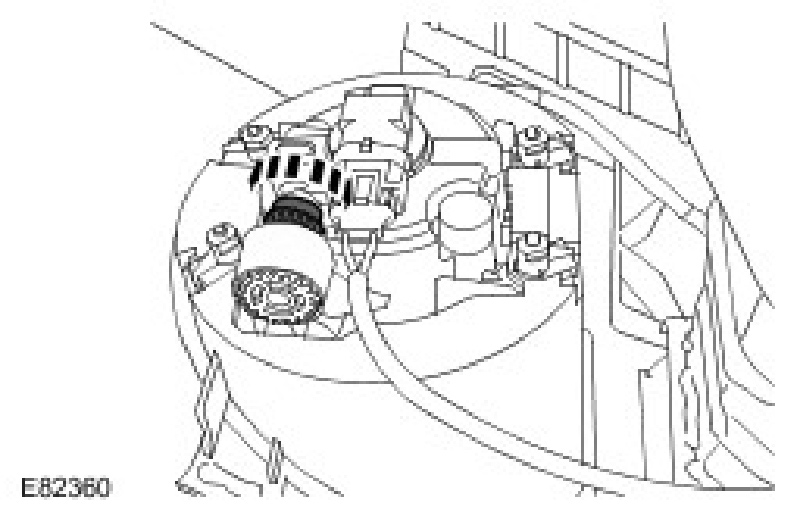

5. Adjust the fog lamp using the thumb wheel.





6. Install the fender splash shield.
7. To adjust the second fog lamp, repeat the above procedure.
