Engine Control Module: Service and Repair



Engine Control Module (ECM)

Service Repair No - 18.30.03

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the cover and disconnect the battery ground cable.

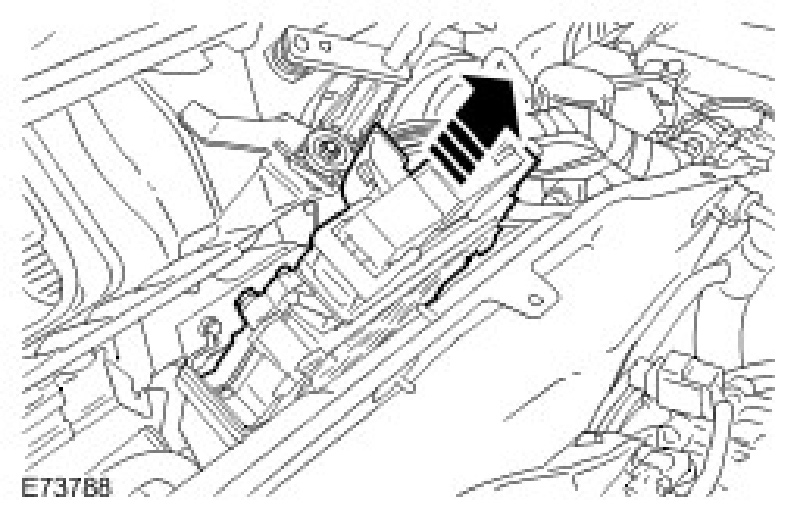

2. Remove the plenum chamber panel.

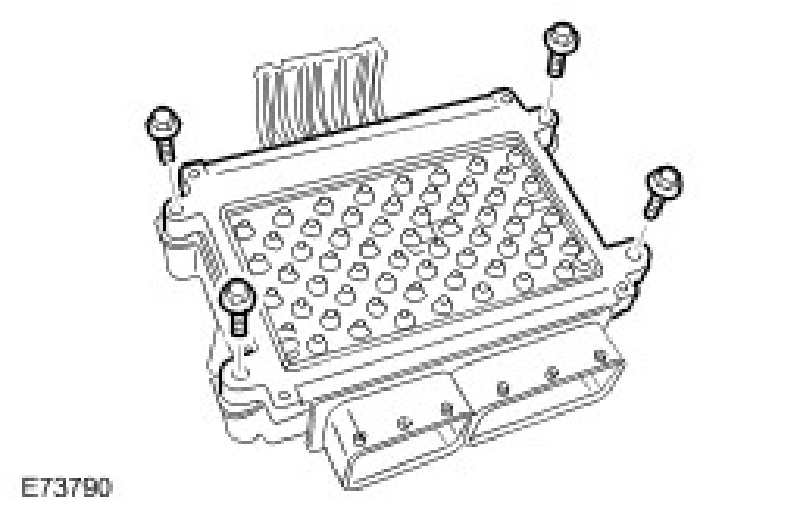

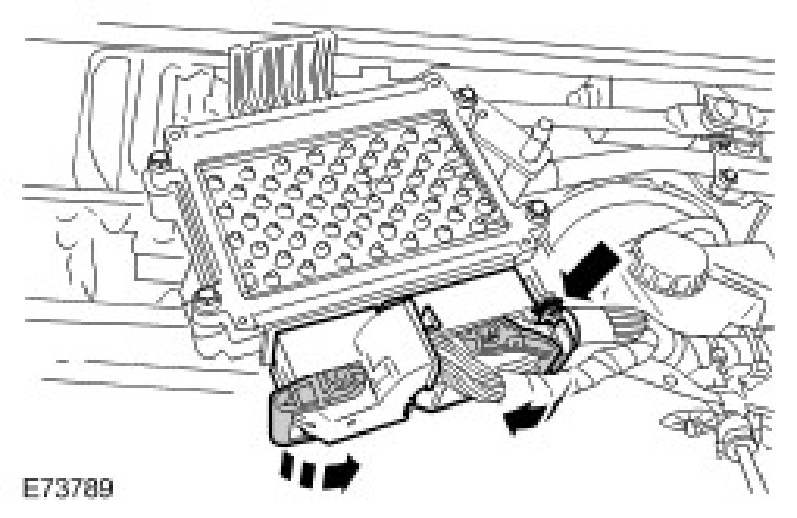

4. Petrol ECM shown, diesel similar.





5. Torque: 6 Nm





Installation
1. To install, reverse the removal procedure.
2. If a new component has been installed, configure using Land Rover approved diagnostic equipment.
