Throttle Body: Service and Repair

Throttle Body

Removal

WARNING: Make sure to support the vehicle with axle stands.

1. Raise and support the vehicle.

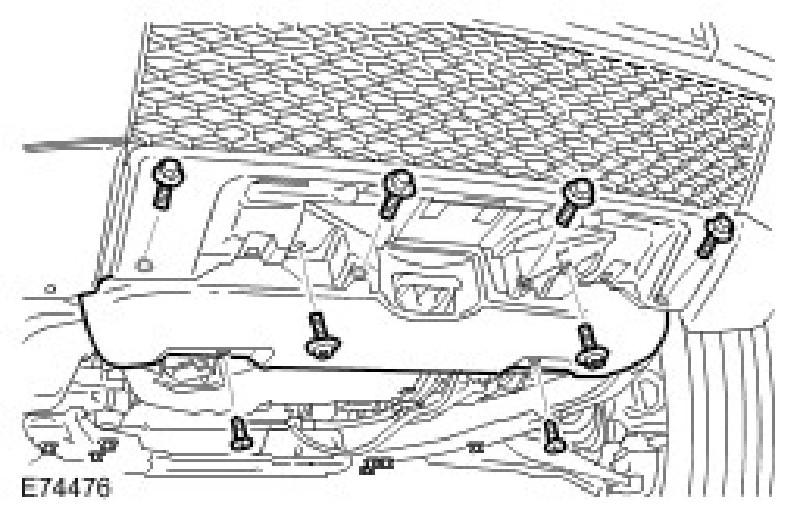

2. Remove the engine undershield.

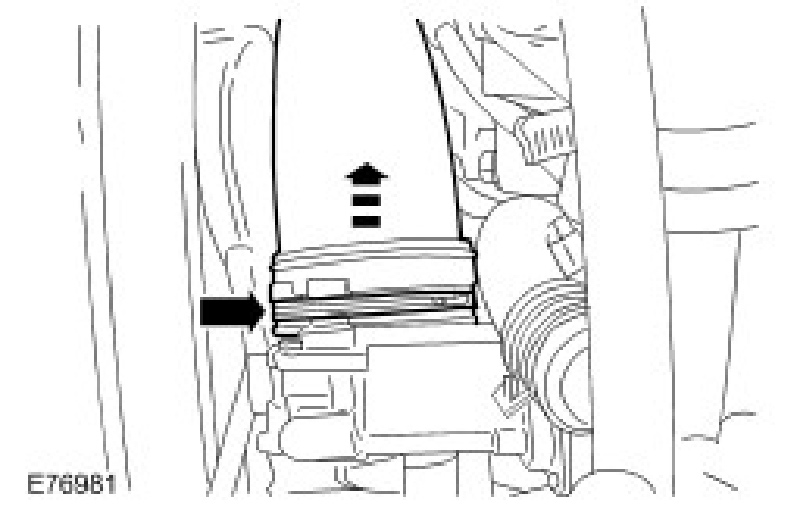

5. Release the air cleaner outlet pipe.

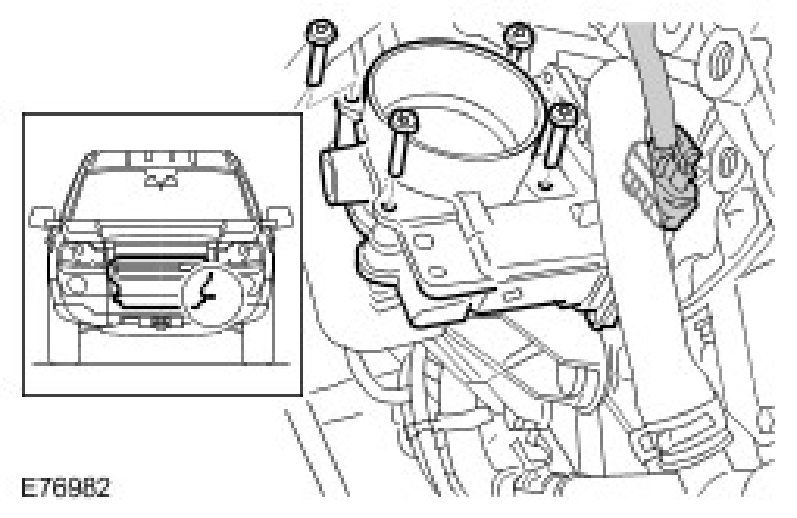

6. Remove the throttle body.





7. Remove and discard the gasket.

Installation
1. Clean the component mating faces.
2. Install a new gasket.

CAUTION: Make sure that the mating faces are clean and free of foreign material.

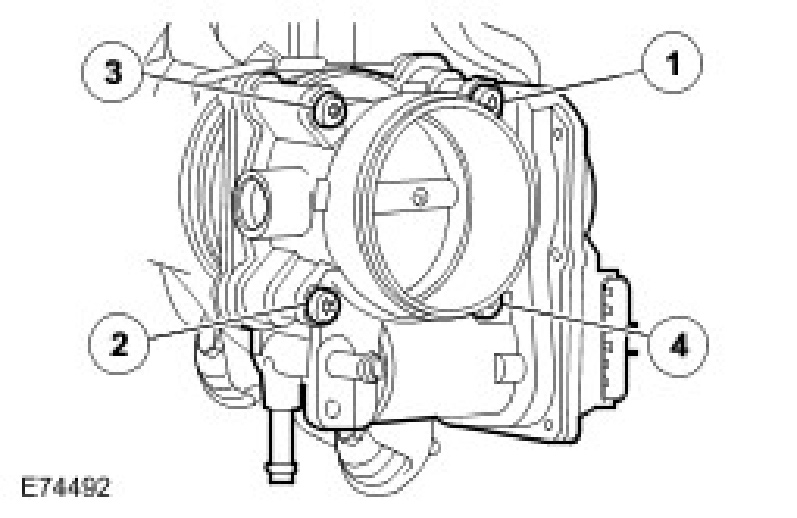

3. Install the throttle body and tighten the screws in the sequence shown.

Torque: 8 Nm





4. Install the engine undershield.
5. Install the front undershield.
6. Install the front towing eye cover.
