Driver Lower Air Bag Module



Driver Lower Air Bag Module

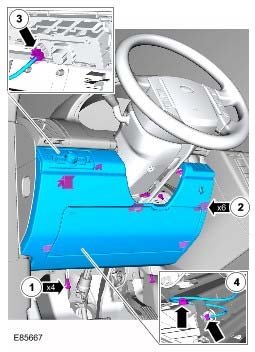

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Make the SRS system safe.
2. Release the steering column lever and raise the column for access.







3. NOTE: If the SRS component is to be replaced, the bar code of the new unit must be recorded.

Torque: 6 Nm







4. NOTE: Do not disassemble further if the component is removed for access only.







5.







Installation

1. To install, reverse the removal procedure.
