Steering Wheel: Service and Repair

Steering Wheel

Service Repair No - 57.61.01

Removal

1. Make the SRS system safe.
2. Remove the driver air bag module.

3.
Torque:
48 Nm





4. CAUTION: Protect the surrounding trim to avoid damage.

NOTE: Do not disassemble further if the component is removed for access only.

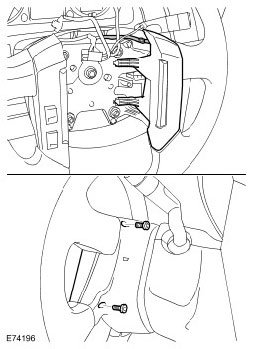

Remove the 2 Torx screws.
Disconnect the electrical connector.





5. CAUTION: Protect the surrounding trim to avoid damage.

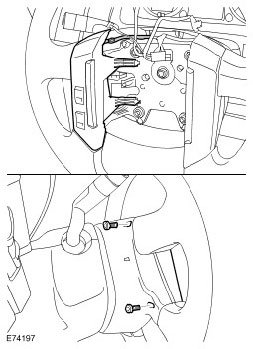

Remove the 2 Torx screws.
Disconnect the electrical connector.





6. Remove the steering wheel control switch harness.





7.





Installation

1. Install the steering wheel cover.
2. Install the wiring harness
3. Install the cruise speed control switch.
4. Install the horn switch.
5. Install the steering wheel.
6. Install the driver air bag module.
