Differential Front Bushing

Differential Front Bushing

Service Repair No - 51.15.43

Special Service Tools


























Removal

1. WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

2. Remove both rear wheels and tires.
3. Remove the rear differential.

4. CAUTION: Mark the components to aid installation.

CAUTION: Note the fitted position of the component prior to removal.

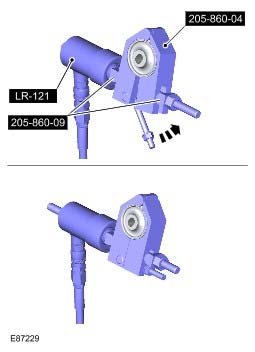

Using the special tools, remove the bushing.
Special Service Tools: Remover, Differential Bushing
Special Service Tools: Remover, Differential Bushing
Special Service Tools: Spacer, Differential Bushing
Special Service Tools: Hydraulic Cylinder 10t





Installation

1. Using the special tool, compress the bushing.
Special Service Tools: Installer, Differential Bushing
Special Service Tools: Installer, Differential Bushing
Special Service Tools: Hydraulic Cylinder 10t





2. CAUTION: Make sure the correct special tool is used to install the bushings to the correct depth.

NOTE: Make sure that these components are installed to the noted removal position.

Using the special tool, install the bushing.
Special Service Tools: Spacer, Differential Bushing
Special Service Tools: Remover, Differential Bushing
Special Service Tools: Installer, Differential Bushing
Special Service Tools: Installer, Differential Bushing
Special Service Tools: Hydraulic Cylinder 10t





3. Install the rear differential.
4. Install the rear wheels and tires.
