Windshield Washer Reservoir: Service and Repair



Windshield Washer Reservoir

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

2. Remove the RH fender splash shield.
3. Drain the washer reservoir fluid.

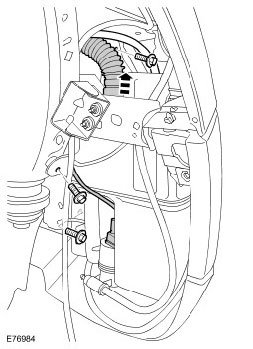

4. Remove the windshield washer reservoir.

Torque: 6 Nm





5. NOTE: Do not disassemble further if the component is removed for access only.

Remove the windshield washer pump.





6. Remove the headlamp washer pump.





Installation

1. To install, reverse the removal procedure.
