Rear Window Wiper Pivot Arm



Rear Window Wiper Pivot Arm

Special Service Tools





303-D121
Puller, General Purpose

Removal

NOTE: Removal steps in this procedure may contain installation details.

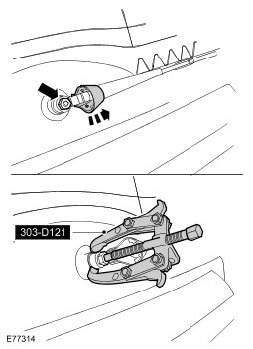

1. CAUTION: Make sure that these components are installed to the noted removal position.

Release the cover.
Loosen, but do not remove the nut.
Using the special tool, release the rear window wiper pivot arm.
Special Service Tools: Puller, General Purpose





2. Remove the rear window wiper pivot arm nut.

Torque: 7 Nm

3. Remove the rear window wiper pivot arm.





4. NOTE: Do not disassemble further if the component is removed for access only.

Remove the rear window wiper blade.





Installation

1. CAUTION: Make sure that the component aligns with the installation mark.

To install, reverse the removal procedure.
