Front Fender Liner: Service and Repair



Fender Splash Shield

Service Repair No - 76.10.48

Removal

1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

2. Remove the fender moulding.

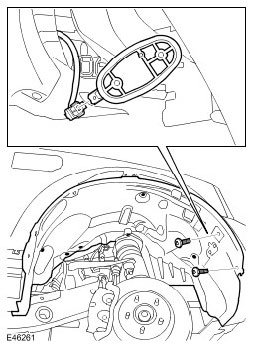

3. Remove the fender splash shield.
^ Remove the 2 screws.
^ Remove the 6 retainers.
^ Disconnect the electrical connector.







4. NOTE: Do not disassemble further if the component is removed for access only.

Remove the tire pressure antenna.
^ Remove the 2 retainers.







Installation

1. Install the tire pressure antenna.
^ Install the retainers.

2. Install the fender splash shield.
^ Connect the electrical connector.
^ Install the retainers.
^ Install the screws.

3. Install the fender moulding.
