Seat Track: Service and Repair

Seat Track - Vehicles Without: Power Seats

Removal

1. Remove the front safety belt buckle.
2. Remove the front seat cushion side trim.
^ Remove the 2 Torx screws.
^ Release from the 4 clips.







3. Remove the front seat base trim.
^ Remove the screw.
^ Release the 2 clips.







4. Remove the front seat base.
^ Remove the 6 nuts.







5. Remove the front seat cushion assembly.

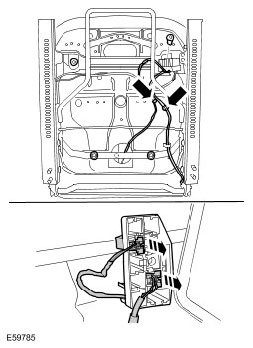

^ Release and disconnect the 2 electrical connectors.
^ Remove the 4 Torx bolts.







6. Remove the seat track assembly.
^ Remove the 4 Torx bolts.







Installation

1. Install the seat track assembly.
^ Tighten the Torx bolts to 25 Nm (18 lb.ft).

2. Install the front seat cushion assembly.
^ Tighten the Torx bolts to 25 Nm (18 lb.ft).
^ Connect and secure the electrical connectors.

3. Install the front seat base.
^ Tighten the nuts to 25 Nm (18 lb.ft).

4. Install the front seat base trim.
^ Secure in the clips.
^ Tighten the screw.

5. Install the front seat cushion side trim.
^ Secure in the clips.
^ Tighten the screws.

6. Install the front safety belt buckle.
