Third Row Seat

Third Row Seat

Service Repair No - 78.10.39

Removal

NOTE: Third row seats must be removed as a pair.

1. Remove the loadspace compartment anchors.
^ Remove the 4 Torx bolts.







2. Remove the loadspace trim panels.
^ Release from the 4 clips.







3. NOTE: Torx bolts may be re-used.

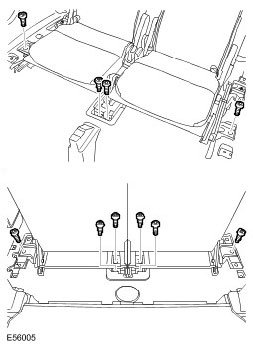

Remove the third row seats.
^ Release the trim cover.
^ Remove the 10 Torx bolts.







4. NOTE: Do not disassemble further if the component is removed for access only.

Separate the third row seats.
^ Remove the seat frame finisher.
^ Drill out the 6 rivets.
^ Remove the 2 brackets.







Installation

1. Attach the third row seats.
^ Install the brackets.
^ Install the rivets.

2. Install the third row seats.
^ Tighten the Torx bolts to 40 Nm (30 lb.ft).
^ Secure the trim cover.

3. Install the loadspace trim panels.
^ Secure in the clips.

4. Install the loadspace compartment anchors.
^ Tighten the Torx bolts to 25 Nm (18 lb.ft).
