Traction Control Switch: Service and Repair


Ride and Handling Optimization Switch

Service Repair No - 86.65.11

Removal





1. NOTE: Automatic transmission shown. Manual transmission is similar.

WARNING: The gear lever knob will be released suddenly, keep face clear during removal.

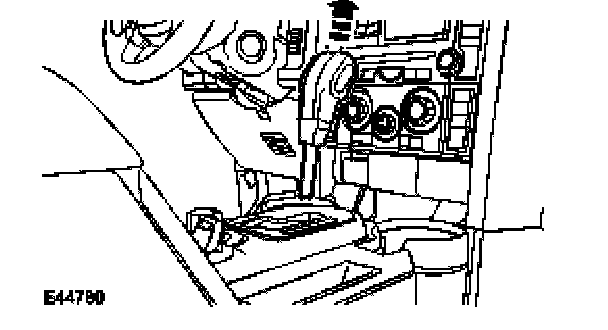

Remove the selector lever knob.
^ Pull the knob upwards.

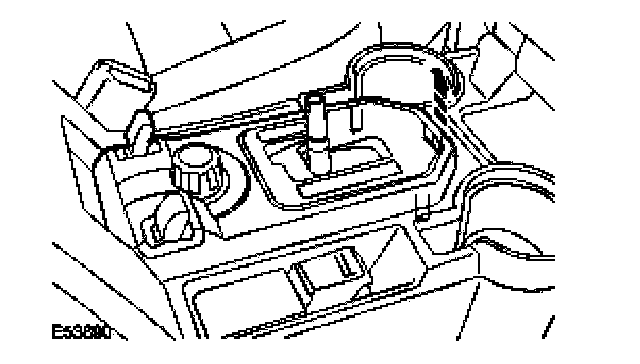

2. Release the ride and handling optimization switch assembly.
^ Release the 4 clips.

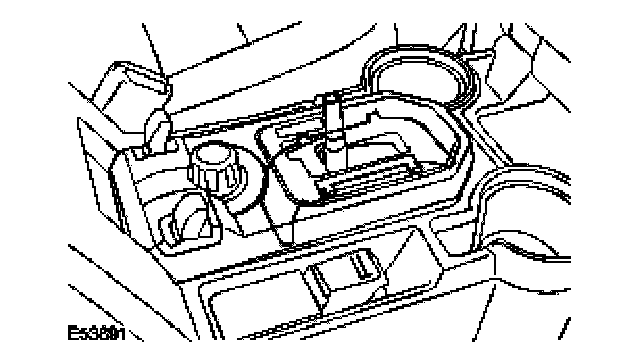

3. Release the selector lever panel. b! Release the 4 clips.

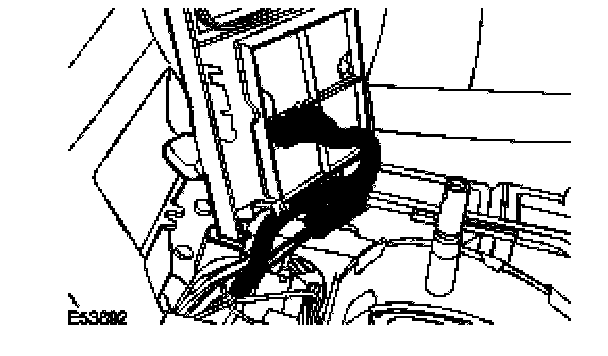

4. Remove the ride and handling optimization switch assembly.
^ Disconnect the 2 electrical connectors.





5. Remove the selector lever panel.

Installation
1. Install the selector lever panel.
2. Install the ride and handling optimization switch assembly.
^ Connect the electrical connectors.
^ Secure the selector lever trim panel.

3. CAUTION: Only fit the selector knob when the selector lever is in the 'P' position.

Install the selector lever knob. Engage the locating tang of the knob with the slot in the selector lever. Push the knob fully onto the selector lever.
