Piston Pin Diameter
Piston Pin Diameter 1.
NOTE: The
piston and
piston pin are a matched pair. Do not mix up the components.

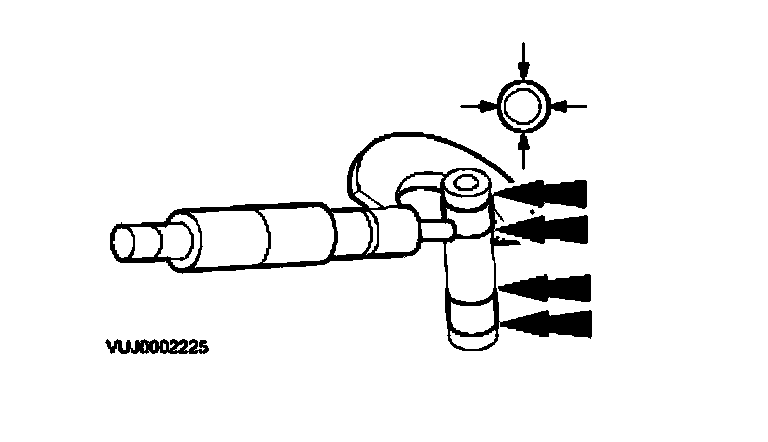

Measure the
piston pin diameter.
^
Measure the diameter in two directions.
^
If the values are not to specification, install a new
piston and a new
piston pin.
