Climate Control Assembly

Climate Control Assembly

Service Repair No - 80.10.02

Removal
1. Remove the instrument panel console.
2. Remove the climate control assembly.

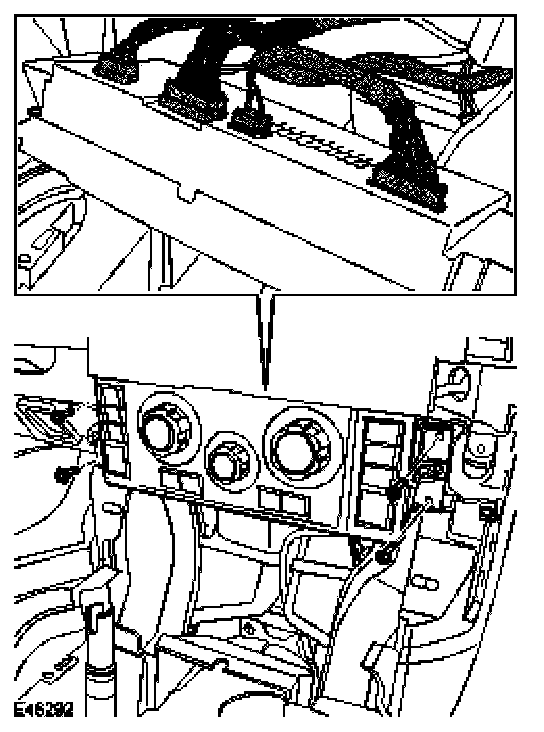

^ Remove the 4 Torx screws.
^ Disconnect the 4 electrical connectors.

Installation
1. Install the climate control assembly.
^ Connect the electrical connectors.
^ Tighten the Torx screws.

2. Install the instrument panel console.
3. Using T4, configure a new climate control assembly.
