Brake Light Switch: Service and Repair



Stoplamp Switch

Removal

CAUTION: The brake pedal MUST NOT be depressed during this operation. Failure to comply will result in damage to the stoplamp switch.

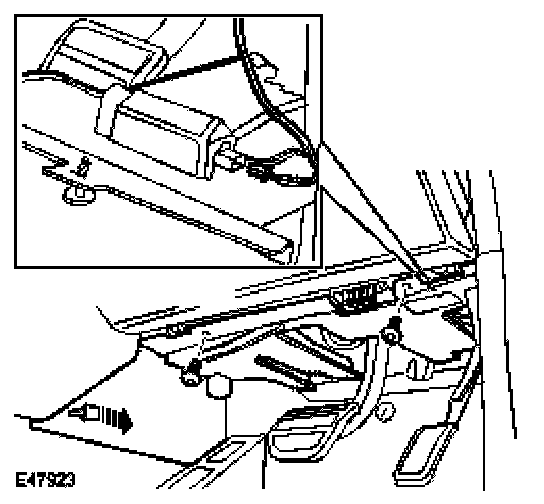

1. Remove the closing trim panel.
^ Release the clip.
^ Remove the 2 screws.
^ Disconnect the electrical connector.





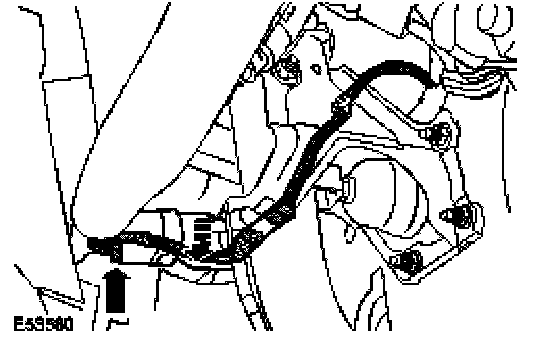

2. Remove the stoplamp switch.
^ Disconnect the electrical connector.
^ Rotate the switch clockwise.





Installation

CAUTION: The brake pedal MUST NOT be depressed during this operation. Failure to comply will result in damage to the stoplamp switch.

1. Install the stoplamp switch.
^ Rotate the switch counterclockwise.
^ Connect the electrical connector.

2. Install the closing trim panel.
^ Connect the electrical connector.
^ Secure the clip.
^ Tighten the screws.
