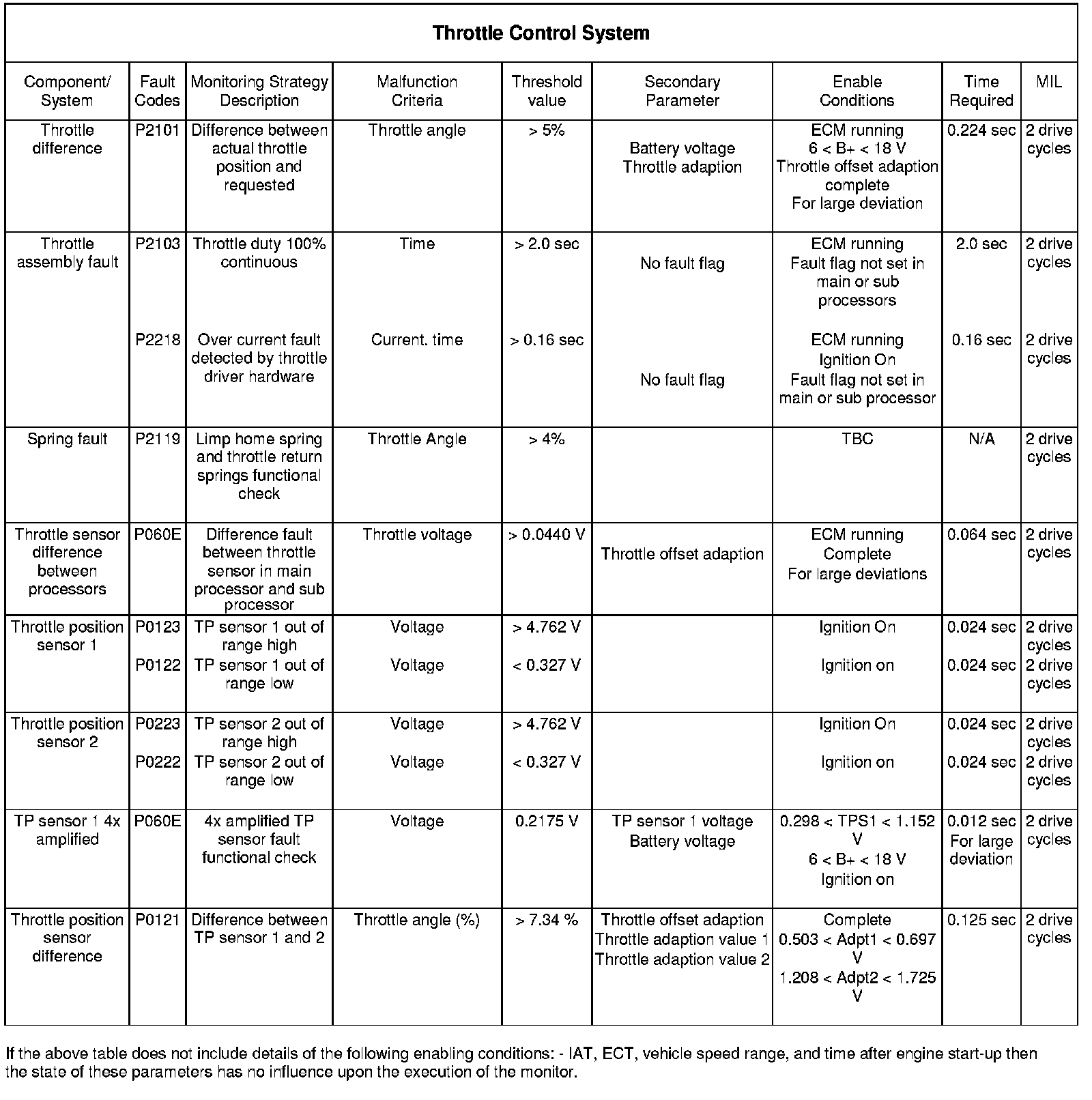

Throttle Control System
Throttle Control SystemDescriptionThe Electronic Throttle Interface consists of 2 PWM output drives to control the throttle blade position, with 2 analogue signals for throttle position feedback. The 2 position signals have positive linear characteristics.
