Parking Assist Control Module: Service and Repair
Parking Aid ModuleRemoval 1.
Remove the C-pillar lower trim panel.

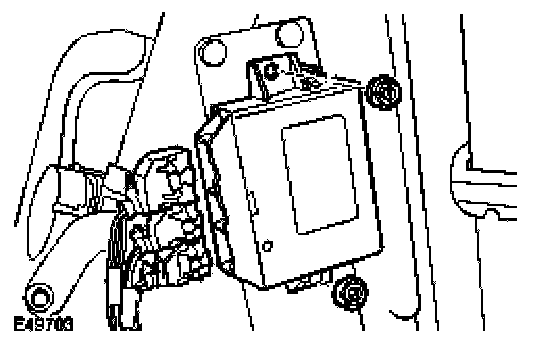

2.
Remove the parking aid module.
^
Disconnect the 3 electrical connectors.
^
Remove the 2 nuts
Installation 1.
Install the parking aid module.
^
Tighten the nuts to
5 Nm (4 ft. lbs.).
^
Connect the electrical connectors.
2.
Install the C-pillar lower trim panel.
