Front Impact Severity Sensor



Front Impact Severity Sensor

Removal

WARNING:
^ It is imperative that before any work is undertaken on the SRS system, the appropriate information is read thoroughly.
^ Always disconnect both battery cables before beginning work on the SRS system. Disconnect the ground cable first. Never reverse connect the battery.

NOTE: If the SRS component is to be replaced, the bar code of the new unit must be recorded.

1. Make the SRS system safe.
2. Remove the headlamp assembly.

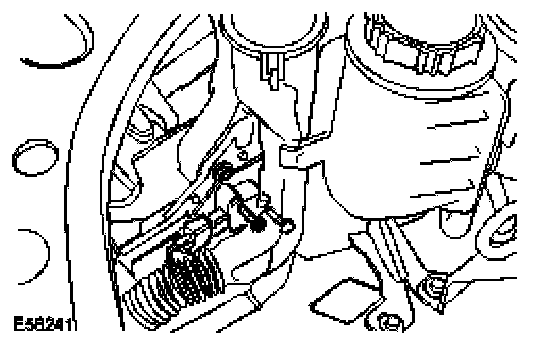

3. Remove the front impact sensor.
^ Disconnect the electrical connector.
^ Remove the 2 Torx bolts.





Installation
1. Install the front impact sensor.
^ Tighten the Torx bolts to 8 Nm (6 ft. lbs.).
^ Connect the electrical connector.

2. Install the headlamp assembly.
