System Specifications

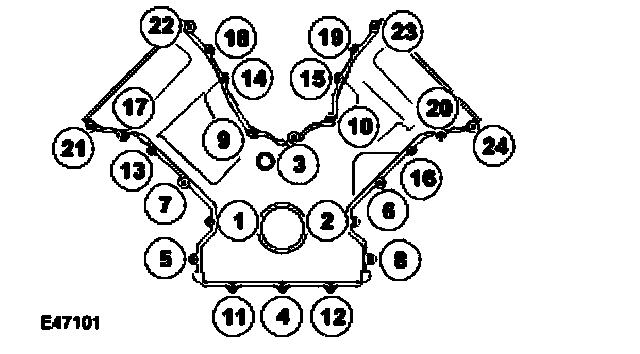

Torque Specifications Timing Cover Evenly and progressively tighten the bolts in the sequence shown to
12 Nm (9 ft. lbs.).
Tighten the crankshaft pulley bolt to
380 Nm (280 ft. lbs.).
Timing Chain Tensioner Install the LH secondary timing chain tensioner retaining bolts.
Tighten the bolts to
12 Nm (9 ft. lbs.).
Install the LH primary
timing chain tensioner guides.
Tighten the bolts to
12 Nm (9 ft. lbs.).
