Windshield Washer Pump: Service and Repair



Windshield Washer Pump

Removal

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

1. Raise and support the vehicle.
2. Remove the LH fender splash shield.

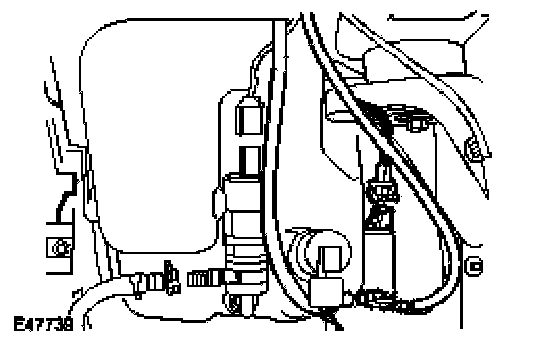

3. Release the windshield washer pump hoses.
^ Drain the washer reservoir fluid.

4. Disconnect the windshield washer pump electrical connector.
5. Remove the windshield washer pump.
^ Discard the O-ring seal.





Installation
1. Install the windshield washer pump.
^ Install a new O-ring seal.

2. Connect the windshield washer pump electrical connector.
3. Connect the windshield washer pump hoses.
4. Install the fender splash shield.
5. Lower the vehicle.
6. Top-up the windshield washer reservoir.
