Entertainment System Control Panel: Service and Repair



Rear Passenger Entertainment Control Panel

Removal
1. Remove the register.

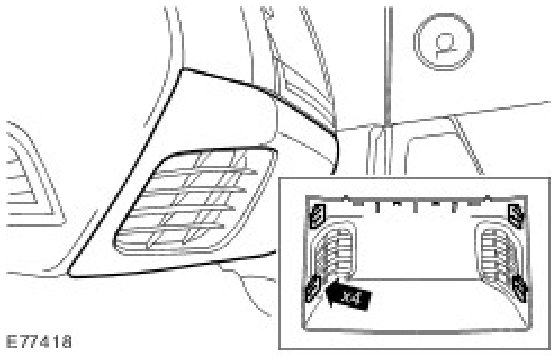

2. Remove the rear floor register.
- Release the 4 clips.

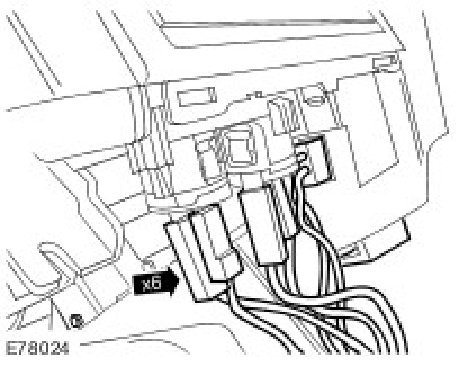

3. Disconnect the 5 electrical connectors.

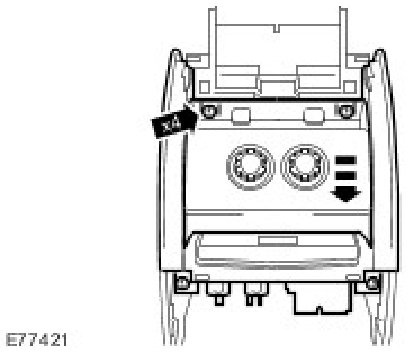

4. Remove the floor console rear trim panel.
- Remove the 4 screws.







NOTE: Do not disassemble further if the component is removed for access only.

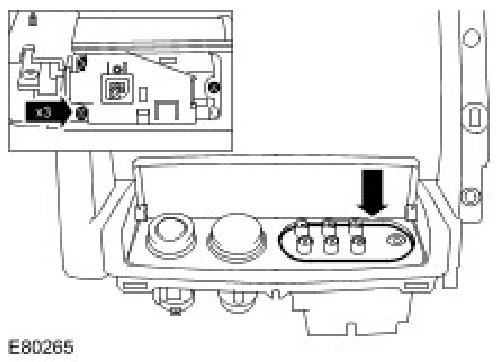

5. Remove the rear passenger entertainment control panel.
- Remove the 3 screws.







Installation
1. Install the rear passenger entertainment control panel.
- Install the 3 screws.

2. Install the floor console rear trim panel.
- Install the 4 screws.

3. Connect the 5 electrical connectors.
4. Install the rear floor register.
- Secure the 4 clips.

5. Install the register.
