Instrument Panel Console Switch Assembly

Instrument Panel Console Switch Assembly

Service Repair No - 86.65.17

Removal
1. Remove the instrument panel console.

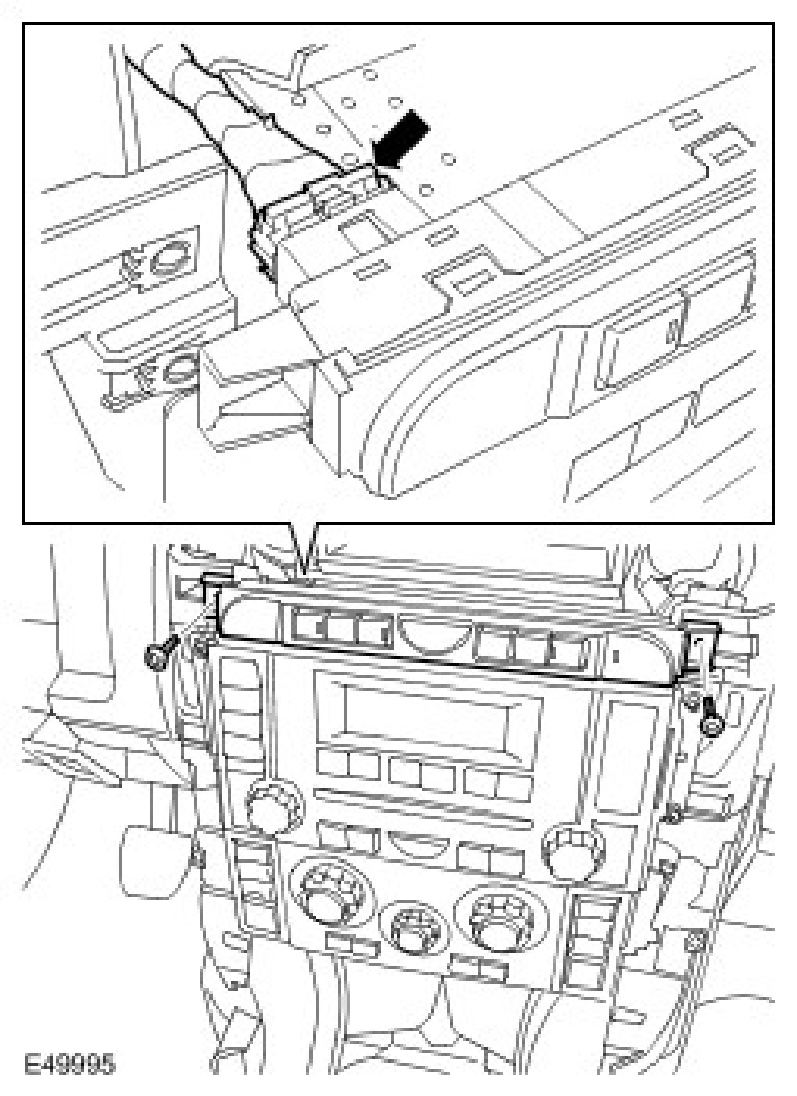

2. Remove the instrument panel switch assembly.
^ Remove the 2 Torx screws.
^ Disconnect the electrical connector.

Installation
1. Install the instrument panel switch assembly.
^ Connect the electrical connector.
^ Tighten the Torx screws.
2. Install the instrument panel console.
