General Specifications

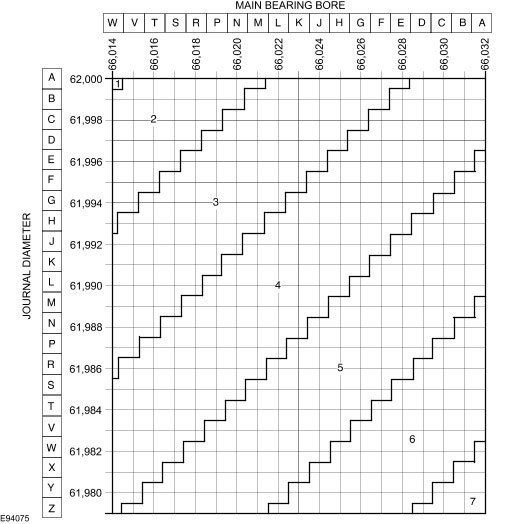

JOURNAL DIAMETER AND MAIN BEARING BORE CHART





The thickness grade of all main bearing shells are to be selected to give a total running clearance of not less than 0.022 mm or greater than 0.040 mm
