Driver Side Register Trim Panel



DRIVER SIDE REGISTER TRIM PANEL

Removal

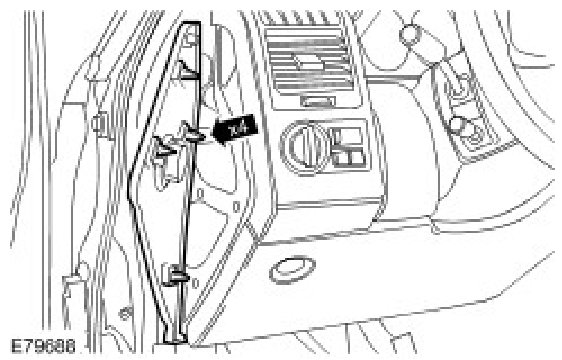

1. Remove the instrument panel end trim panel.
- Release sufficient door aperture seal for access.
- Carefully release the 4 clips.







2. Remove the driver's side register.

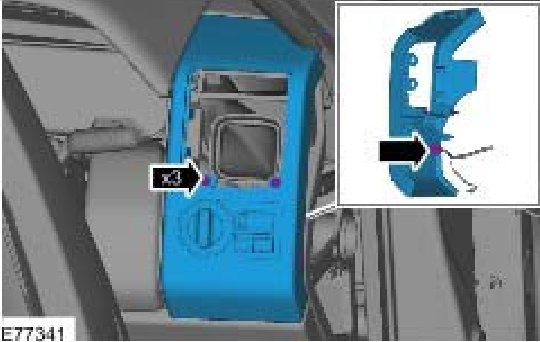

3. Remove the driver side register trim panel.
- Remove the 3 screws.
- Disconnect the headlamp switch electrical connector.







NOTE: Do not disassemble further if the component is removed for access only.

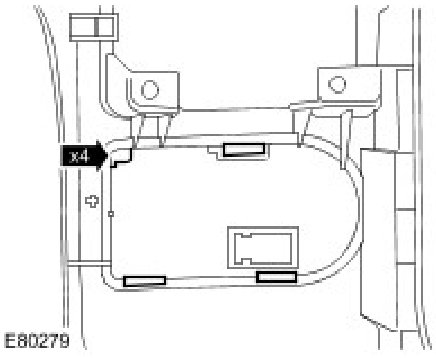

4. Remove the headlamp switch.
- Remove the headlamp switch.







Installation
1. Install the headlamp switch.
2. Install the driver side register trim panel.
- Connect the headlamp switch electrical connector.
- Install the 3 screws.

3. Install the driver's side register.
4. Install the instrument panel end trim panel.
- Carefully align and secure the clips.
- Install the aperture seal.
