Climate Control Assembly



Climate Control Assembly

Removal

NOTE: On high line models the climate control ECU is an integral part of the climate control assembly. Using the Land Rover approved diagnostic system, calibrate a new climate control assembly.

1. Remove the RH floor console extension.

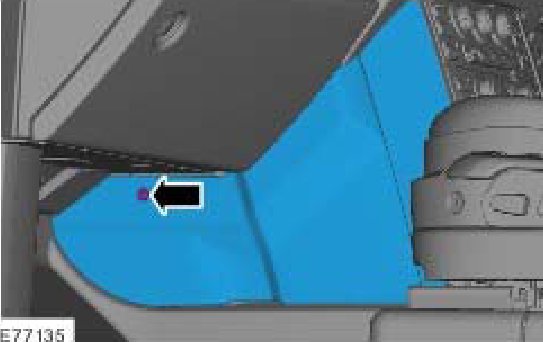

2. Remove the LH floor console extension.
- Remove the screw.
- Release the 2 clips.

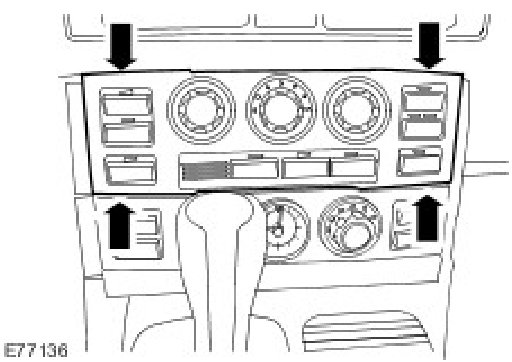

3. Release the climate control assembly.
- Release the 4 clips.

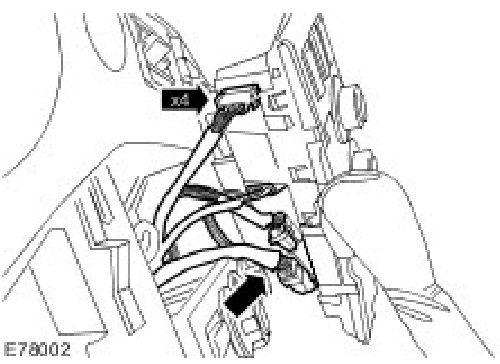

4. Remove the climate control assembly.
- Disconnect the 5 electrical connectors.







Installation
1. Install the climate control assembly.
- Connect the electrical connectors.

2. Attach the climate control assembly.
- Secure the clips.

3. Install the LH floor console extension.
- Secure the clips.
- Tighten the screw.

4. Install the RH floor console extension.
5. Using the Land Rover approved diagnostic system, calibrate a new climate control assembly.
