Engine Junction Box (EJB)



Engine Junction Box (EJB)

Removal
1. Disconnect the battery ground cable.
2. Remove the engine control module (ECM) cover.

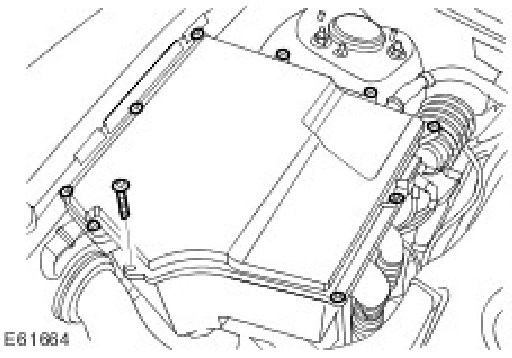

- Remove the 10 screws.







3. Remove the engine junction box (EJB).

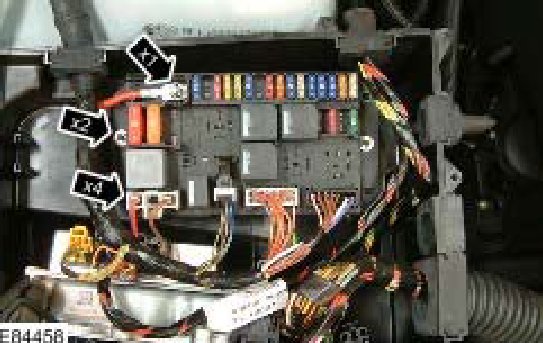

- Disconnect the 4 electrical connectors.
- Release the EJB positive battery cable.
- Remove the 2 nuts.







CAUTION: Note the fitted position of the component prior to removal.

NOTE: Do not disassemble further if the component is removed for access only.

4. Remove the 5 relays.

Installation
1. Install the relays.
2. Install the EJB.
- Tighten the nuts to 8 Nm (6 lb.ft).
- Secure the EJB positive battery cable.
- Connect the electrical connectors.

3. Install the ECM cover.
- Tighten the screws to 2 Nm (1 lb.ft).

4. Connect the battery ground cable.
